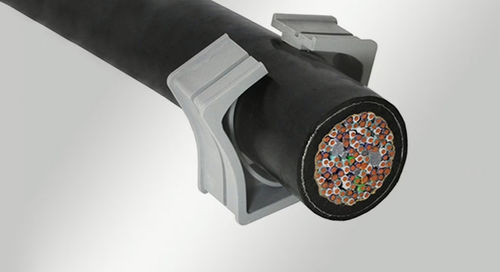

Silicone cable grommet KTF series

membraneIP54

The grommets KTF are suitable for cable diameters up to 65 mm. Suitable for KEL-JUMBO cable entry frames. Cables with a comparatively smaller diameter can be utilised with KEL-JUMBO frames by using an adapter grommet KTA. The KTF-SCDP grommets accept a wide range of cable diameters. This is a great benefit when the exact cable diameter is not known in advance. The single circular membrane can be peeled away to accommodate the specific diameter of the cable or hose. For this purpose, only a small hole between the rings needs to be pierced. Then the corresponding ring can be removed. The peeled-off area is always round, ensuring a secure seal around cable/hose. The KTF-SCDP cable grommet enables flexible routing and sealing (IP54) of electrical cables and hoses with diameters from 8 - 55 mm. The KTF-SCDP cable grommets are not split and therefore only usable for cables without connectors. Specifications IP rating (EN 60529) - IP54 UL Type (UL 50E) - UL Type 12 Flame class - UL94-V0, self-extinguishing Operating temperature - -40 C° to 100 C° Material - Elastomer Properties - silicone free, halogen free Advantages & benefits Installation of cables up to 65 mm in diameter It is possible to install rigid cables at angles Large clamping range Easy storage Circular membranes can be peeled off easily (KTF-SCDP)
