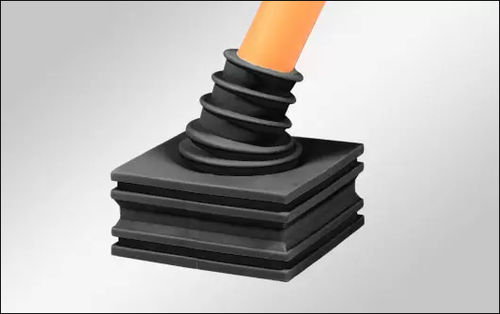

Elastomer cable grommet KT-DPF multi

strain relief

grommets accept a wide range of cable diameters. A great benefit when the exact cable diameter is not known in advance. Due to the flexibility and unique pyramid shape, routing and flexible positioning of rigid cables is much easier compared to using conventional cable glands. Black KT-DPF grommets have an increased chemical resistance, e.g. against aggressive oils, coolants etc. The KT-DPF grommets are not split and therefore only usable for cables without connectors. It is recommended that additional strain relief be provided for the cables using a cable tie. Cutting of KT-DPF grommets: Cable diameter less 20%. Specifications IP rating (EN 60529) - IP54 Flame class - UL94-HB Operating temperature - -30 C° to 90 C° Material - Elastomer Properties - higher chemical resistance Advantages & benefits Large clamping range of 3 to 26 mm with only 3 grommets Ideal for wiring non pre-terminated cables locally Easy storage
