range for pre-terminated cables is used with the following cable entry frames:
KEL-QUICK
QVT-CLICK

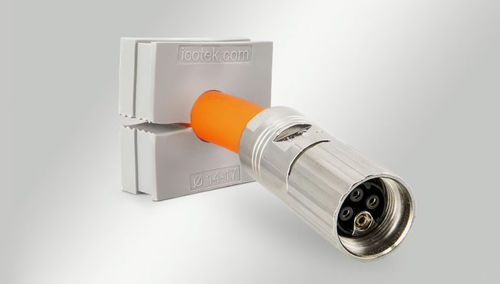

The innovative membrane enables the routing of cables with diamters that can vary up to 3 mm.
For the first time, utilising the QTMB, even large cables with cable diameters from 14 to 29 mm can be routed.
ST-B Plugs can be used for sealing the grommets if cables have been removed.
Specifications
IP rating (EN 60529) - IP54
Flame class - UL94-V0, self-extinguishing
Operating temperature - -40 C° to 100 C°
Material - Elastomer
Properties - silicone free, halogen free
Advantages & benefits
Routing of cables with and without connectors
Only 7 grommets cover a clamping range from 14 to 29 mm
Innovative wave cut for a better sealing
Innovative membrane for high flexibility
