Hydraulic plunger pump EL series
hydraulic motorcast ironfor industrial applications

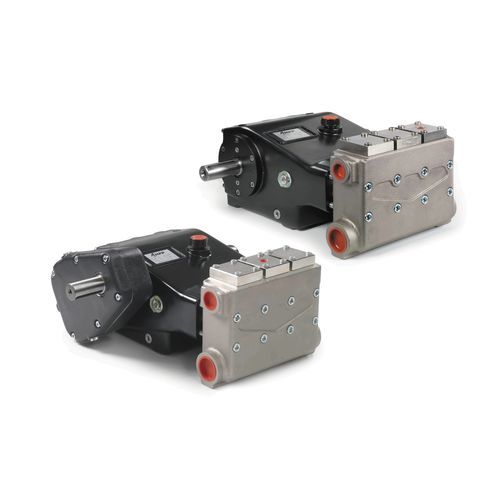

Hydraulic plunger pump - EL series - ID-tec B.V. - hydraulic motor / cast iron / for industrial applications
Hydraulic plunger pump - EL series - ID-tec B.V. - hydraulic motor / cast iron / for industrial applications
Add to favorites
Compare this product

Characteristics

Type
plunger
Operation
hydraulic motor
Material
cast iron
Applications
for industrial applications
Other characteristics
high-pressure, lubricated, horizontal
Pressure

Max.: 190 bar
(2,755.7 psi)

Min.: 90 bar
(1,305.3 psi)

Flow rate

Max.: 164 l/min
(43.32 us gal/min)

Min.: 84 l/min
(22.19 us gal/min)

Speed

Max.: 1,900 rpm
(11,938 rad.min-1)

Min.: 700 rpm
(4,398 rad.min-1)

Weight

Max.: 105 kg
(231.49 lb)

Min.: 88 kg
(194.01 lb)

Power

Max.: 31.6 kW
(42.96 hp)

Min.: 29.4 kW
(39.97 hp)

Description

The EL / ELR high pressure pumps are available in 90 to 190 bar, 84 to 164 liters per minute and 24.9 to 31.6 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES EL / ELR pumps are relatively low in pressure with a large displacement and available in various pump speeds from 700 to 1900 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs. Features Splash lubrication Ceramic plungers Connection kit (optional) Pulse system (optional) Bell housing for hydraulic connection (optional) Pressure relief kit (optional)
