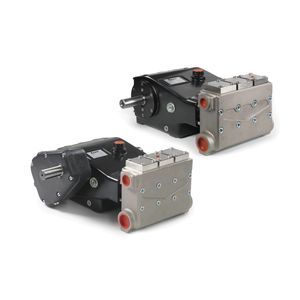

High-pressure hydraulic pump ELS series
plungerhydraulically-operatedcast iron

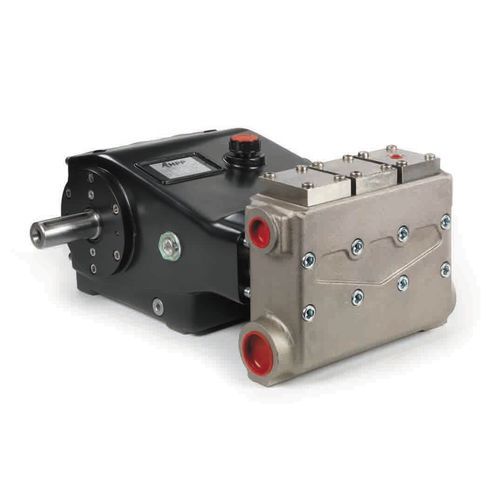

High-pressure hydraulic pump - ELS series - ID-tec B.V. - plunger / hydraulically-operated / cast iron
High-pressure hydraulic pump - ELS series - ID-tec B.V. - plunger / hydraulically-operated / cast iron
Add to favorites
Compare this product

Characteristics

Type
plunger
Operation
hydraulically-operated
Material
cast iron
Applications
for industrial applications
Other characteristics
high-pressure, horizontal
Pressure

Max.: 210 bar
(3,045.8 psi)

Min.: 110 bar
(1,595.4 psi)

Flow rate

Max.: 162 l/min
(42.8 us gal/min)

Min.: 84 l/min
(22.19 us gal/min)

Speed

Max.: 1,000 rpm
(6,283 rad.min-1)

Min.: 850 rpm
(5,341 rad.min-1)

Weight

88 kg
(194.01 lb)

Power

Max.: 41 kW
(55.74 hp)

Min.: 36 kW
(48.95 hp)

Description

The ELS high pressure pumps are available in 110 to 210 bar, 84 to 162 liters per minute and 36 to 41 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES ELS pumps are relatively low in pressure with a large displacement and available in various pump speeds from 850 to 1000 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs. Features Splash lubrication Ceramic plungers Connection kit (optional) Pulse system (optional) Bell housing for hydraulic connection (optional) Pressure relief kit (optional)
