High-pressure hydraulic pump EF series
plungerhydraulic motorstainless steel

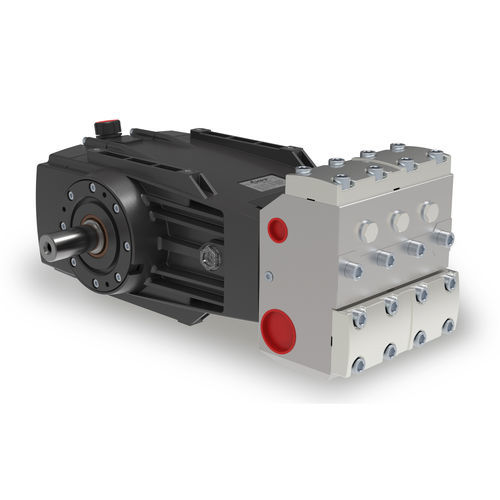

High-pressure hydraulic pump - EF series - ID-tec B.V. - plunger / hydraulic motor / stainless steel
High-pressure hydraulic pump - EF series - ID-tec B.V. - plunger / hydraulic motor / stainless steel
Add to favorites
Compare this product

Characteristics

Type
plunger
Operation
hydraulic motor
Material
stainless steel
Applications
for industrial applications
Other characteristics
high-pressure, horizontal
Pressure

Min.: 120 bar
(1,740.5 psi)

Max.: 280 bar
(4,061.1 psi)

Flow rate

Min.: 75 l/min
(19.81 us gal/min)

Max.: 183 l/min
(48.34 us gal/min)

Speed

Min.: 800 rpm
(5,027 rad.min-1)

Max.: 2,200 rpm
(13,823 rad.min-1)

Weight

Min.: 90 kg
(198.42 lb)

Max.: 105 kg
(231.49 lb)

Power

Min.: 36 kW
(48.95 hp)

Max.: 46 kW
(62.54 hp)

Description

The EF / EFR high pressure pumps are available in 120 to 280 bar, 75 to 183 liters per minute and 36 to 46 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES EF - EFR pumps are relatively low in pressure with a large displacement and available in various pump speeds from 800 to 2200 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs. Features Splash lubrication Ceramic plungers Connection kit (optional) Pulse system (optional) Bell housing for hydraulic connection (optional) Drive shaft kit (optional) Seal kit max. 85 degrees (optional)
