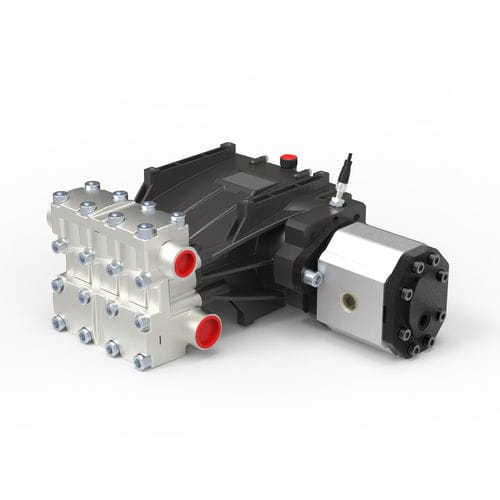

High-pressure hydraulic pump ET series
plungerhydraulically-operatedstainless steel

High-pressure hydraulic pump - ET series - ID-tec B.V. - plunger / hydraulically-operated / stainless steel
High-pressure hydraulic pump - ET series - ID-tec B.V. - plunger / hydraulically-operated / stainless steel
Add to favorites
Compare this product

Characteristics

Type
plunger
Operation
hydraulically-operated
Material
stainless steel
Applications
for industrial applications
Other characteristics
compact, high-pressure, horizontal
Pressure

Min.: 110 bar
(1,595.4 psi)

Max.: 250 bar
(3,625.9 psi)

Flow rate

Min.: 57 l/min
(15.06 us gal/min)

Max.: 144 l/min
(38.04 us gal/min)

Speed

Min.: 1,450 rpm
(9,111 rad.min-1)

Max.: 1,750 rpm
(10,996 rad.min-1)

Weight

40 kg
(88.18 lb)

Power

Min.: 28 kW
(38.07 hp)

Max.: 31 kW
(42.15 hp)

Description

The ET high pressure pumps are available in 110 to 250 bar, 57 to 144 liters per minute and 28 to 31 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES ET pumps are relatively low in pressure with a large displacement and available in various pump speeds from 1450 to 1750 rpm. This compact pump can be placed anywhere with ease and takes up little space. The excellent quality and reliability guarantee very high efficiency and very low operating costs. Features Splash lubrication Ceramic plungers Connection kit (optional) Easy to use left and right stainless steel high pressure valves Nickel-plated brass pump head Suitable for hydraulic drive
