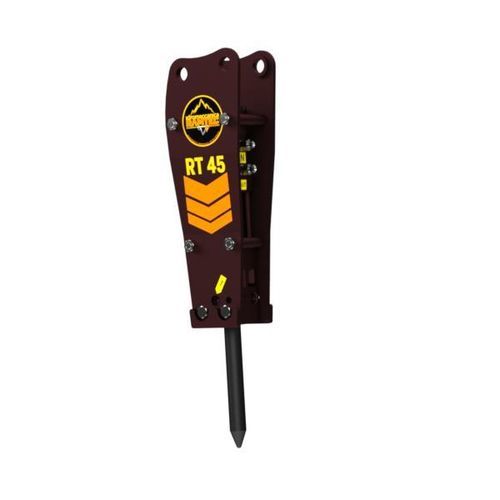

Hydraulic rock breaker RT 45

for excavators

Description
The RT 45 hydraulic demolition hammer is designed for construction and renovation tasks where concrete or masonry must be broken out in confined or narrow spaces. Engineered to fit mini excavators and similar carriers, the unit features an open casing with side plates for improved heat dispersion during continuous operation.

Applications / Mounting

• Can be mounted on skid steer
• Can be mounted on mini excavator
• Carrier weight range: 0.7 - 2 t

USA SPECS
Carrier weight: 0.7 – 2 t
Breaker weight: 187 lb
Inner diam. IN hose: 3/8 inch
Inner diam. OUT hose: 1/2 inch
Chisel diameter: 1.9 inch
Height with standard tool: 43.3 inch
Required oil supply: 4.75 – 7.4 gal/min
Oil pressure adjusted to the hammer: 1160 – 1595 psi
Maximum back pressure: 406 psi
Blows per minute: 700 – 1200
Energy per blow: 147 ft/lbs

METRIC SYSTEM
Carrier weight: 0.7 – 2 t
Breaker weight: 85 kg
Inner diam. IN hose: 10 mm
Inner diam. OUT hose: 12 mm
Chisel diameter: 47 mm
Height with standard tool: 1100 mm
Required oil supply: 18 – 28 L/min
Oil pressure adjusted to the hammer: 80 – 110 bar
Maximum back pressure: 28 bar
Blows per minute: 700 – 1200
Energy per blow: 200 J

Caractéristiques / spécifications techniques

• Model: RT 45
• Type: Hydraulic demolition hammer / breaker
• Recommended carrier weight: 0.7 - 2 t
• Breaker weight: 85 kg (187 lb)
• Inner hose diameter (IN/OUT): 10 mm / 12 mm (3/8" / 1/2")
• Chisel diameter: 47 mm (1.9")
• Height with standard tool: 1100 mm (43.3")
• Required oil supply: 18 – 28 L/min (4.75 – 7.4 gal/min)
• Operating oil pressure (adjusted to the hammer): 80 – 110 bar (1160 – 1595 psi)
• Maximum back pressure: 28 bar (406 psi)
• Blows per minute: 700 – 1200
• Energy per blow: 200 J (147 ft/lbs)
• Open casing with side plates for faster heat dispersion
