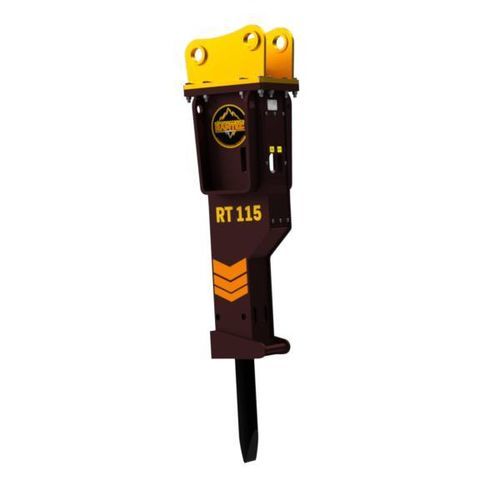

Hydraulic rock breaker RT 115

for excavators

Description
The RT 115 hydraulic demolition hammer is designed for medium-size excavation and the demolition of concrete structures in roadworks and mining. Its compact, slim layout enables access to narrow areas. The unit is engineered for versatile operation and straightforward maintenance.

Mounting
12 – 20 t

USA SPECS
Carrier weight: 12 – 20 t
Breaker weight: 2205 lb
Inner diam. IN hose: 1 inch
Inner diam. OUT hose: 1 inch
Chisel diameter: 4.5 inch
Height with standard tool: 78.7 inch
Required oil supply: 26.42 – 39.63 gal/min
Oil pressure adjusted to the hammer: 2030 – 2320 psi
Maximum back pressure: 290 psi
Blows per minute: 400 – 700
Energy per blow: 2000 ft/lbs

METRIC SYSTEM
Carrier weight: 12 – 20 t
Breaker weight: 1000 kg
Inner diam. IN hose: 25 mm
Inner diam. OUT hose: 25 mm
Chisel diameter: 115 mm
Height with standard tool: 2000 mm
Required oil supply: 100 – 150 L/min
Oil pressure adjusted to the hammer: 120 – 160 bar
Maximum back pressure: 20 bar
Blows per minute: 400 – 700
Energy per blow: 2700 J

Technical specifications

• Model: RT 115
• Type: hydraulic demolition hammer / hydraulic breaker
• Suitable for: medium-size excavation, demolition of concrete structures, road and mining works
• Favourable power-to-weight ratio
• Compact, slim structure for access to narrow areas
• Designed for versatility and easy maintenance
• Recommended carrier weight: 12 – 20 t
• Breaker weight: 2205 lb (approx. 1000 kg)
• Inner diam. IN hose: 1 inch (25 mm)
• Inner diam. OUT hose: 1 inch (25 mm)
• Chisel diameter: 4.5 inch (115 mm)
• Height with standard tool: 78.7 inch (2000 mm)
• Required oil supply: 26.42 – 39.63 gal/min (100 – 150 L/min)
• Oil pressure adjusted to the hammer: 2030 – 2320 psi (120 – 160 bar)
• Maximum back pressure: 290 psi (20 bar)
• Blows per minute: 400 – 700 bpm
• Energy per blow: 2000 ft/lbs (2700 J)
