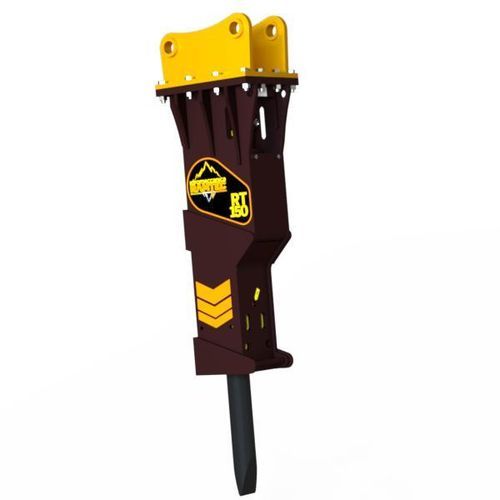

Hydraulic rock breaker RT 150

boomfor excavators

Description
The RT150 demolition hammer features a sturdy structure, an excellent power-to-weight ratio, low noise emissions and reduced vibration transfer to the excavator boom. It is easy to maintain and designed for demanding demolition tasks such as breaking compact quarry rock and reinforced concrete.

Mounting / Carrier

• Recommended carrier weight: 27 – 35 t

USA SPECIFICATIONS
Carrier weight: 27 – 35 t
Breaker weight: 5291 lb
Inner diam. IN hose: 1¼ inch
Inner diam. OUT hose: 1¼ inch
Chisel diameter: 5.9 inch
Height with standard tool: 98.4 inch
Required oil supply: 45 – 52.8 gal/min
Oil pressure adjusted to the hammer: 2175 – 2610 psi
Maximum back pressure: 217 psi
Blows per minute: 380 – 750
Energy per blow: 5000 ft/lbs

METRIC SYSTEM
Carrier weight: 27 – 35 t
Breaker weight: 2400 kg
Inner diam. IN hose: 32 mm
Inner diam. OUT hose: 32 mm
Chisel diameter: 150 mm
Height with standard tool: 2500 mm
Required oil supply: 170 – 200 L/min
Oil pressure adjusted to the hammer: 150 – 170 bar
Maximum back pressure: 15 bar
Blows per minute: 380 – 750
Energy per blow: 6500 J

Technical specifications

• Model: RT 150
• Manufacturer / Brand: Idromeccanica Ramtec
• Suitable for: quarry compact rocks, reinforced concrete and other challenging demolition works
• Design features: sturdy structure; excellent power/weight ratio; low noise level; low vibration transfer to the excavator boom; easy to maintain
• Recommended carrier weight: 27 – 35 t
• Breaker weight: 2400 kg (5291 lb)
• Inner diameter IN hose: 32 mm (1¼ inch)
• Inner diameter OUT hose: 32 mm (1¼ inch)
• Chisel diameter: 150 mm (5.9 inch)
• Height with standard tool: 2500 mm (98.4 inch)
• Required oil supply: 170 – 200 L/min (45 – 52.8 gal/min)
• Operating oil pressure (adjusted to the hammer): 150 – 170 bar (2175 – 2610 psi)
• Maximum back pressure: 15 bar (217 psi)
• Blows per minute: 380 – 750
• Energy per blow: 6500 J (5000 ft/lbs)
