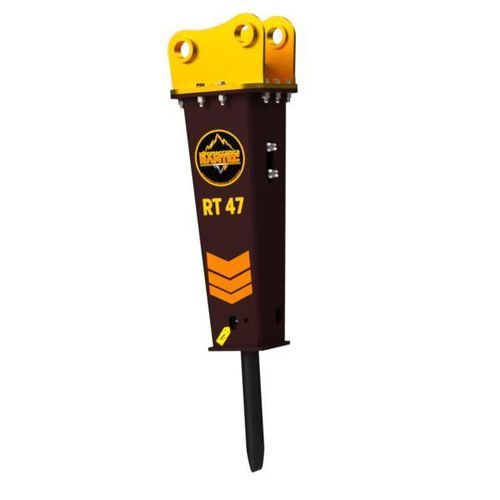

Excavator rock breaker RT 47

hydraulic

Description
RT 47 demolition hammer is designed for construction and renovation tasks where demolition of concrete or masonry is required, especially in confined or narrow work areas. The closed casing protects internal components from impacts, rocks and dust while contributing to noise reduction. The RT 47 is suitable for mounting on skid steer loaders and mini excavators and can be interchanged with other breakers via a skid steer plate.

Mounting and compatibility

• Mountable on skid steer loaders and mini excavators
• Recommended carrier weight: 1–3 t

USA SPECS
Carrier weight — 1 – 3 t
Breaker weight — 220 lb
Inner diam. IN hose — 3/8 inch
Inner diam. OUT hose — 1/2 inch
Chisel diameter — 1.9 inch
Height with standard tool — 39.4 inch
Required oil supply — 5.28 – 7.92 gal/min
Oil pressure adjusted to the hammer — 1160 – 1595 psi
Maximum back pressure — 406 psi
Blows per minute — 700 – 1200
Energy per blow — 170 ft/lbs

METRIC SYSTEM
Carrier weight — 1 – 3 t
Breaker weight — 100 kg
Inner diam. IN hose — 10 mm
Inner diam. OUT hose — 12 mm
Chisel diameter — 47 mm
Height with standard tool — 1000 mm
Required oil supply — 20 – 30 L/min
Oil pressure adjusted to the hammer — 80 – 110 bar
Maximum back pressure — 28 bar
Blows per minute — 700 – 1200
Energy per blow — 230 J

Technical specifications

• Application: demolition of concrete or masonry; work in confined and narrow spaces
• Compatibility: skid steer loader, mini excavator (mounting via skid steer plate)
• Casing: closed casing for protection against impacts, rocks and dust, and for noise reduction
• Recommended carrier weight: 1–3 tonnes
• Breaker weight: approx. 100 kg (220 lb)
• Chisel diameter: 47 mm (1.9 inch)
• Blows per minute: 700–1200 bpm
• Energy per blow: 230 J (170 ft·lbs)
• Hydraulic supply (metric): 20–30 L/min at 80–110 bar
• Hydraulic supply (USA): 5.28–7.92 gal/min at 1160–1595 psi
• Maximum back pressure: 28 bar (406 psi)
• Hose connections: IN hose 10 mm (3/8 inch), OUT hose 12 mm (1/2 inch)
• Height with standard tool: 1000 mm (39.4 inch)
