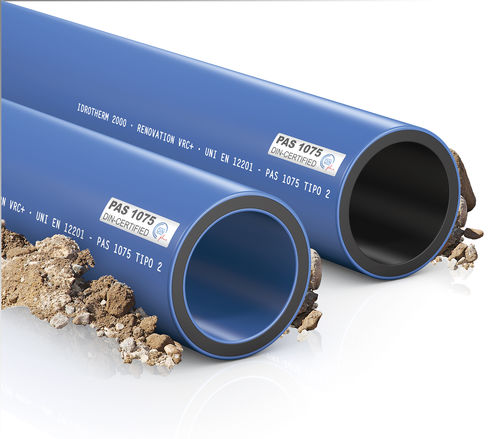

potable water pipe / transport / sanitary / plastic
RENOVATION VRC+

{{requestButtons}}

Characteristics

  • Use:

    for potable water

  • Applications:

    transport, sanitary

  • Material:

    plastic

  • Other characteristics:

    flexible, standard, crush-resistant, lightweight, multilayer

  • Inner diameter:

    Max.: 1,108.2 mm

    Min.: 14 mm

  • Outer diameter:

    Max.: 1,200 mm

    Min.: 20 mm

  • Pressure:

    6 bar, 10 bar, 12.5 bar, 16 bar, 25 bar (87.023 psi)

Description

these are produced with two layers (inside black and outside blue) or with 3 layers (inside blue, middle black and outside blue) co-extruded from polyethylene PE100 RC (MRS 10 MPa) with high resistance to cracking (resistance to slow crack growth SCG>8760 hours according to the ISO 13479 and FNCT>8760 hours according to the ISO 16770 test).
they have characteristics which conform to the standards: EN 12201 and ISO 4427, whose field of application foresees the distribution in water pressure for human use, including transport before treatments;
they meet the national hygiene and sanitary regulatory guidelines (Ministerial Decree 21/3/73 and Ministerial Decree n. 174 of 6/4/04);
they conform to the requirements of the standard EN 1622 for the organoleptic properties (taste and smell) of supplied water;
they conform to the technical specifications: DVGW GW323 and PAS 1075, for the installation without a sand bed, and certified in accordance to PAS 1075;
they guarantee an extraordinarily high standard of safety, thanks to the excellent tolerance to surface scratches and on-time loading, ensuring an exceptionally increased lifetime;
they constitute the ideal solution for problems related to laying pipelines, contributing to the global reduction of installation and maintenance costs for underground networks (up to 50% saving as compared to traditional laying) whilst still maintaining the advantageous characteristics of polyethylene pipes such as: lightness, flexibility, simple installation.
