laboratory shaker incubator / natural convection
KS 4000 i control

Add to MyDirectIndustry favorites
Compare this product

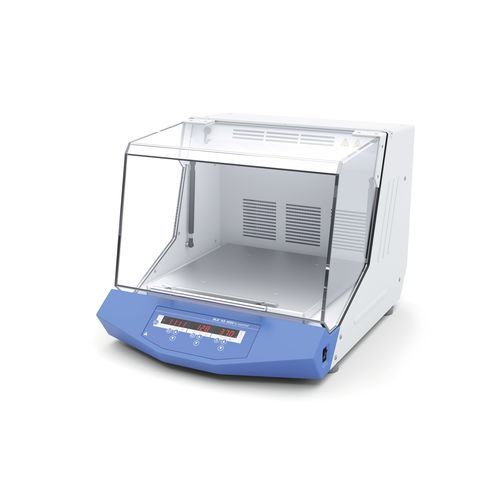

laboratory shaker incubator / natural convection laboratory shaker incubator / natural convection - KS 4000 i control


  • Type:

    laboratory shaker

  • Convection:

    natural convection

  • Temperature:

    Min.: 5 °C (41 °F)

    Max.: 80 °C (176 °F)

  • Capacity:

    90 l (23.78 gal)

  • Rotational speed:

    Min.: 10 rpm (63 rad.min-1)

    Max.: 500 rpm (3,142 rad.min-1)


Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.
• Large LED display for speed and time settings
• Controls with antimicrobial coating for reduction of bacteria
• Integrated PID temperature control (use of two PT 1000 temperature sensors)
• Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
• Electronic temperature and speed control
• Electronic timer switch: 0 - 999 h (set by the minute or by the hour)
• Optional built-in cooler for connection to an external cooling unit e.g. RC 2 basic / control
• Unit switches off automatically if disturbed
• Unit stops automatically when hood is lifted
• Collecting tray with drain hose on rear of unit
• Simple operation
• All functions can be controlled and documented with labworldsoft®
• Attachements are not included in delivery, please order seperatly

Technical Data
Type of movement: orbital
Shaker diameter: 20 mm
Permissible shaking weight (incl. attachment): 20 kg
Motor rating input: 82 W
Motor rating output: 24 W
Permissible ON time: 100 %
Speed min (adjustable): 10 rpm
Speed range: 10 - 500 rpm
Speed display: LED
Speed deviation: 1 %
Speed deviation: 1 ±rpm
Speed control: 1 RPM steps
Timer: yes
Timer display: 7 segment LED
Time setting range: 1 - 59940 min
Operating mode: timer and continuous operation
Heating temperature range: room temp. +5° - 80 °C
Heat output: 1000 W
Set temperature resolution: 0.1 ±K
Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C): 0.5 ±K
Temperature display: yes
Temp. stability (0,2l H2O; RT 25°C, T=37°C): 0.1 ±K
Operating area inner chamber: 440 x 440 x 352 mm
