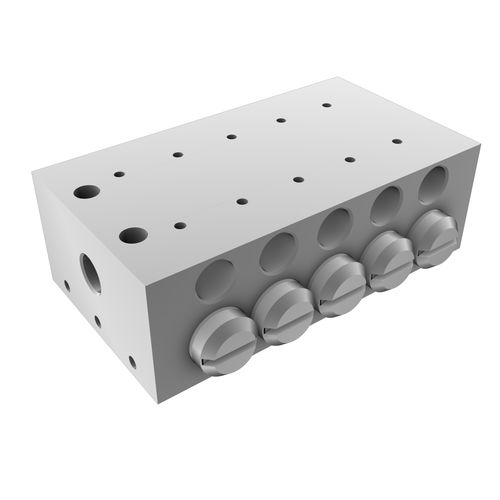

Piston valve DPM
for oilin-linefor centralized lubrication systems

piston valve
piston valve
piston valve
piston valve
piston valve
piston valve
piston valve
piston valve
Add to favorites
Compare this product


Characteristics

Type
piston
Media
for oil
Body
in-line
Applications
for centralized lubrication systems
Associated function
outlet
Temperature

Min.: -20 °C (-4 °F)

Max.: 100 °C (212 °F)

Pressure

Min.: 15 bar (217.6 psi)

Max.: 250 bar (3,625.9 psi)

Description

Lubricant dispensing sequence The initial piston dispenses lubricant to the outlets corresponding to the final piston. The final piston dispenses lubricant to the outlets corresponding to the central piston or, if more than one, to the outlets corresponding to the closest intermediate piston. The intermediate piston dispenses lubricant to the outlets corresponding to the initial piston. The metering pistons in the DPA progressive dividers do not dispense the pre-established lubricant to the corresponding outlet but based on a set circuit sequence.
