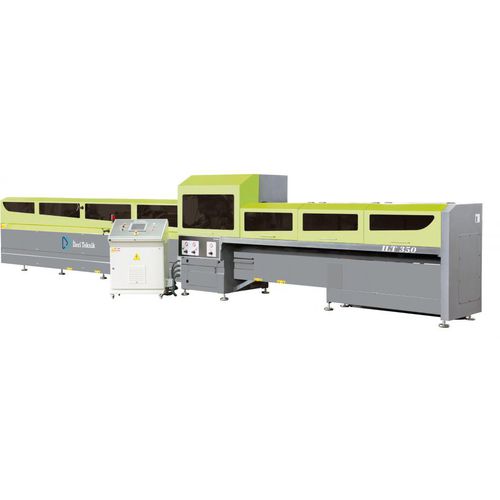

Fully-automatic saw ILT 350
circularmiterfor metals

fully-automatic saw
fully-automatic saw
Add to favorites
Compare this product


Characteristics

Technology
circular, miter
Treated material
for metals
Applications
for pipes
Other characteristics
fully-automatic, with cooling system, heavy-duty, with roller conveyor, with automatic feeder, servo-driven, with touch screen control, PLC-controlled
Circular saw blade diameter

350 mm (14 in)

Round piece diameter

Min.: 15 mm (1 in)

Max.: 80 mm (3 in)

Description

Specifications - Fully automatic machine for straight tube cutting - Material feeding system with rollers, controlled by servo motor - Servo motor controlled pipe length stopper system. - Servo motor controlled vertical cutting system with ball screw, - PLC controlled colour type touch screen display - Heavy duty, helical gear and worm gear sets in gearbox - Head descends on hardened roller type linear guides, - Back lash reduction for prolonged blade life - 200 programs to save the all parameters for cutting again the same material. - PLC controlled touch screen panel, - 20 rpm to 100 rpm blade speed by invertor, - 10 different cutting length adjustment in one material - ± 0.3 mm cutting length precision, - Coolant tank with box to collect chips and electric pump for blade lubrication and -cooling, - Micro sprey lubrication system for saw blade - Bundle loading magazine (L=6 mt. / max. Capacity 2.500 Kg) - Unloading system for front and back side up to 3 mt.
