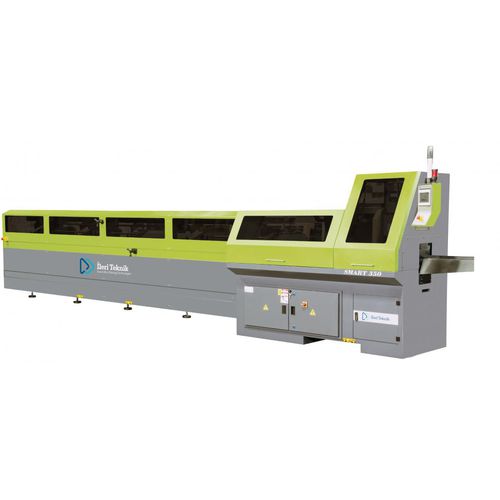

Fully-automatic saw SMART 350 LM 600
circularfor metalsfor tubes

fully-automatic saw
fully-automatic saw
Add to favorites
Compare this product


Characteristics

Technology
circular
Treated material
for metals
Applications
for tubes
Other characteristics
fully-automatic, CNC, with cooling system, servo-driven, with touch screen control, PLC-controlled, with automatic loading
Circular saw blade diameter

350 mm (14 in)

Round piece diameter

Max.: 90 mm (4 in)

Min.: 15 mm (1 in)

Description

Specifications - Fully automatic machine with automotic bundle loader for straight tube cutting - Servo motor controlled material feeding system with ball screw - Servo motor controlled vertical cutting system with ball screw, - PLC controlled colour type touch screen display - Heavy duty, helical gear and worm gear sets in gearbox - Head descends on hardened roller type linear guides, - Back lash reduction for prolonged blade life - 200 programs to save the all parameters for cutting again the same material. - PLC controlled touch screen panel, - 20 rpm to 100 rpm blade speed by invertor, - 1000 mm feeding length. - Over 1000 mm multiply feeding, - 10 different cutting length adjustment in one material - ± 0.2 mm cutting length precision, - Coolant tank with box to collect chips and electric pump for blade lubrication and cooling,
