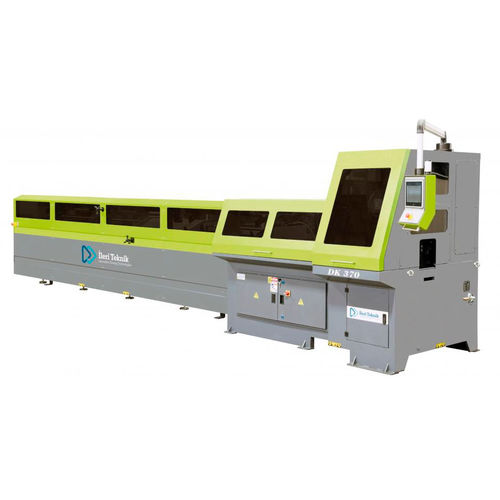

Fully-automatic saw DK 370 LM600 Mitre +/- 60
circularmiterfor metals

fully-automatic saw
fully-automatic saw
Add to favorites
Compare this product


circular, miter
Treated material
for metals
for pipes
Other characteristics
fully-automatic, with cooling system, servo-driven, with touch screen control, PLC-controlled, with automatic loading
Circular saw blade diameter

350 mm, 370 mm (14 in)

Round piece diameter

Min.: 15 mm (1 in)

Max.: 90 mm (4 in)


Specifications - Fully automatic mitre tube cutting machine with automatic bundle loader, - Servo motor controlled saw head rotating system up to left and right 45° (optional ± 60°) - Servo motor controlled material feeding system with ball screw - Servo motor controlled vertical cutting system with ball screw, - PLC controlled colour type touch screen display - Heavy duty, helical gear and worm gear sets in gearbox - Head descends on hardened roller type linear guides, - Back lash reduction for prolonged blade life - 200 programs to save the all parameters for cutting again the same material. - PLC controlled touch screen panel, - 20 rpm to 80 rpm blade speed by invertor, - 10 different cutting length adjustment in one material - ± 0.2 mm cutting length precision for straight cut, - Coolant tank with box to collect chips and electric pump for blade lubrication and cooling, - Micro sprey lubrication system for saw blade - Automatic lubrication system for linear guides and rotating head,
