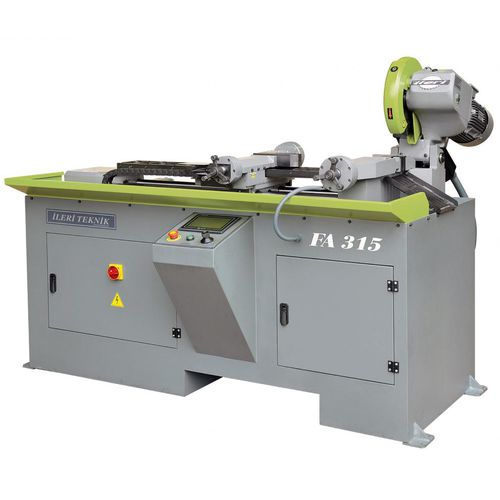

Fully-automatic saw FA 315
circularfor metalsfor tubes

fully-automatic saw
fully-automatic saw
Add to favorites
Compare this product


Characteristics

Technology
circular
Treated material
for metals
Applications
for tubes
Other characteristics
fully-automatic, with cooling system, hydraulic, pneumatic, servo-driven, with touch screen control, PLC-controlled
Circular saw blade diameter

315 mm (12 in)

Round piece diameter

100 mm (4 in)

Description

Specifications - Fully automatic machine for straight tube cutting - Servo motor controlled material feeding system with ball screw - Hydro-pneumatic operation of saw head smoothes descent for optimum cut - PLC controlled colour type touch screen display - Up to 1.000 mm single material feeding - Over 1.000 mm multiply feeding - 4 different cutting length adjustment in one material - ± 0,3 mm cutting length precision - High performance gear box designed in accordance with continious working conditions (helical gears and worm gear set) - 2 speed main motor - Coolant tank with box to collect chips and electrical lubrication pump for blade lubrication and cooling
