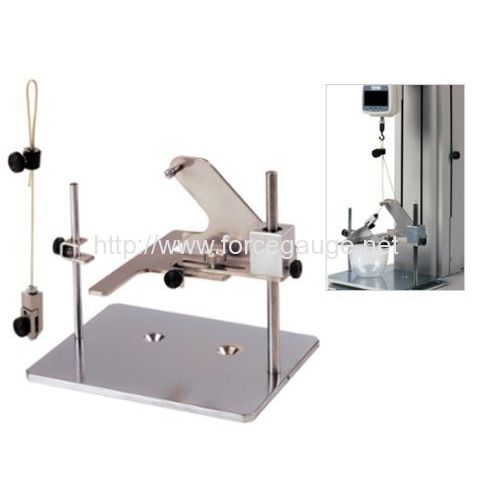

P45-50N is a fixture for 45-degree peel test with 50N capacity.
It is designed for peel test of packaging film especially in food and medical industries.
With a force gauge and test stand, complete a testing system for peel test.
Features
- Ideal for peel test of packaging film especially in food and medical industries
- Starts peeling at 45 degree, simulating the actual performance
- Easy sample fastening with adjustable lever, clear chuck and holding plate
- Offers custom-made solutions to suit for your sample size and shape
Specifications
- Capacity: 50N
- Sample height: 10 to 100ml
- Sample diameter: 20 to 140mm
See our website or catalog below for further information.
Suggested Products
For functional 45-degree peel test up to 50N:
- Digital force gauge ZTS-100N
- Motorized Test Stand MX2-500N-L-V600
- Optional Cable CB-518
See the catalog for details.
