Tensile test fixture PPC-5000N

specimen

Overview

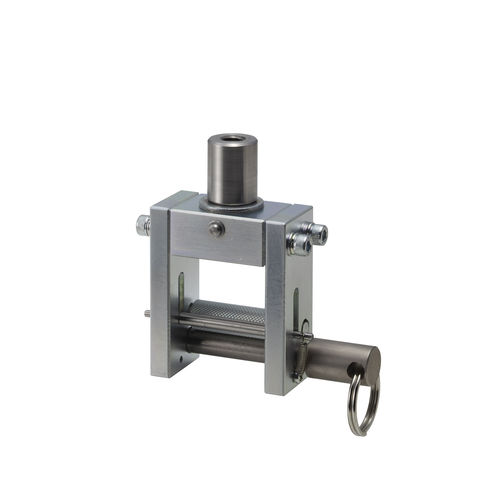

PPC-5000N is an attachment for tensile testing of polypropylene (PP) strapping bands. It provides a winding-type clamp designed to hold PP bands firmly without slipping, enabling tensile measurements up to 5000 N. The attachment supports testing in accordance with the corresponding part of JIS Z1527.

Key points / Notes
The winding clamping method reduces breakage caused by conventional wrapping clamps and minimizes sample slippage during tests. The unit performs force–displacement measurements; elongation rate or percentage elongation must be determined separately.

Features

• Winding-type clamp to secure PP strapping band without slipping
• Reduces band breakage associated with wrapping clamps
• Suitable for tensile tests up to 5000 N capacity
• Designed for measurements corresponding to JIS Z1527 (Polypropylene Band)

Relevant Industrial Standards
Corresponding part of JIS Z1527 [2002] (Polypropylene Band)

Example of product configuration
Typical configurations for tensile testing using PPC-5000N include system examples such as inquiry numbers 1P2001A and 1P2001B. Typical configuration characteristics: capacity 5000 N, PPC-5000N winding clamps to prevent slipping, supplied software capable of plotting force–displacement curves.

Associated products / Typical system components

• Force–Displacement Analysis Unit: FSA-5K2-5000N-EXT (example qty: 1)
• Digital Force Gauge: ZTS-5000N (example qty: 1)
• Motorized Test Stand: MX2-5000N-EXT (example qty: 1)
• Optional attachment: PPC-5000N (shown optionally, qty: 2 in some configs)
• Optional cable: CB-528 (example qty: 1)

Cautions

• This attachment measures force–displacement; percentage elongation must be calculated separately if required.
• For heavy-duty PP strapping, choose an appropriate configuration and verify instrument capacity up to 5000 N.
• Product configuration depends on sample shape, material characteristics and test conditions; confirm specifications for each component.
• Samples with large elongation may require a test stand with sufficient stroke; ensure stroke length is adequate.

Technical specifications

• Model: PPC-5000N
• Manufacturer / Brand: IMADA
• Application: Tensile strength testing of polypropylene (PP) strapping band
• Clamping method: Winding-type clamp (designed to prevent slipping)
• Maximum capacity: 5000 N
• Standards compliance: Corresponding part of JIS Z1527 (Polypropylene Band)
• Typical use: Attachment for force/displacement test systems (used with force gauges and test stands)
• Output / Software: Supplied software can generate force–displacement curves when included in the configuration
