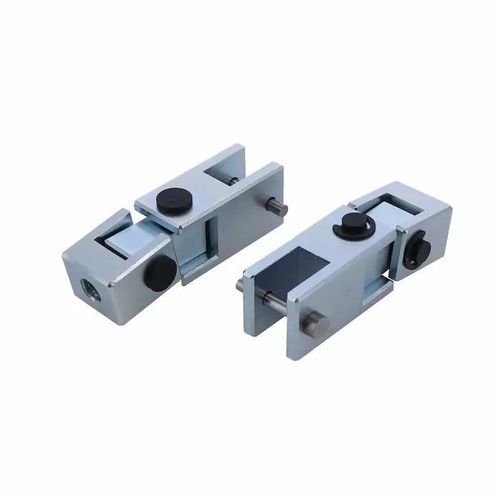

Adhesion test fixture TATJ-5000N

tensileadhesivefor surface bonding strength

Product Details

The Jig TATJ-5000N is designed for measuring Tensile Adhesive Strength for a maximum load of 5000N. It enables testing that complies with the corresponding part of the JIS standard.

• Free Joint
• Hi Force

Features

• For tensile adhesive strength measurement up to 5000N
• Complies with the corresponding part of JIS standard
• The centering mechanism enables uniform and perpendicular load application for measurement accuracy

Relevant Industrial Standards

JIS K 6849 [1994] Testing methods for tensile strength of adhesive bonds (corresponding part only)

Example of Product Configuration

• Configuration 1 (1T2006A): For tensile adhesive strength test using TATJ-5000N. The tensile adhesive strength of the adhesive can be measured. Complies with the corresponding part of JIS standard. For testing up to 5000N.
• Configuration 2 (1T2006B): For tensile adhesive strength test using TATJ-5000N. The tensile adhesive strength of the adhesive can be measured. Complies with the corresponding part of JIS standard. For testing up to 1000N.

Products Used in Example Configurations

• Digital Force gauge: ZTS-5000N (1 unit)
• Motorized Test Stand: MX2-5000N (1 unit)
• Optional Attachment: TATJ-5000N (1 unit)
• Optional cable: CB-528 (1 unit)

• Digital Force gauge: ZTS-1000N (1 unit)
• Motorized Test Stand: MX2-1000N (1 unit)
• Optional Attachment: TATJ-5000N (1 unit)
• Optional Attachment: CA-F6T10 (1 unit)
• Optional cable: CB-528 (1 unit)

Cautions

Test pieces are required for each test. Please refer to the specification sheet of TATJ-5000N for details. As the load value may increase depending on the adhesive, please be careful of overload. Refer to specifications of each product for details. Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions. The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

Characteristics / Technical Specifications

• Product Name: TATJ-5000N
• Type: Tensile Adhesion Test Jig
• Maximum Load: 5000N
• Standard Compliance: JIS K 6849 (corresponding part only)
• Centering mechanism for uniform and perpendicular load application
• Partially complies with JIS standard measurements
