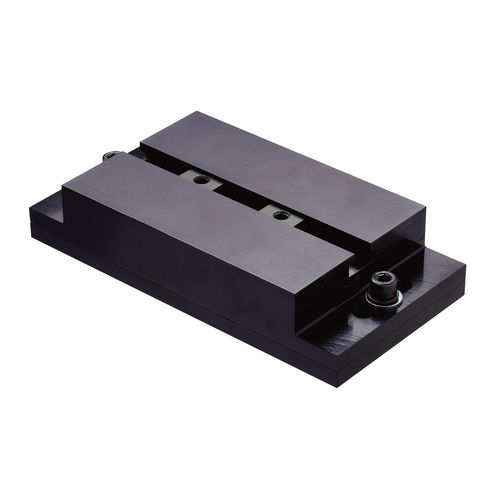

Mechanical restraint system T-Slot Table TS-5000N

TS-5000N is T-Slot table for fixing various attachments with 5000N capacity, ideal for replacing several attachments. Combine it with a force gauge, a test stand and an attachment to complete a testing system. Features - Designed to fix various attachments with movable T nuts - Enables center alignment of vise grips and attachments - Saves time for preparation by inserting the T nuts with attachment mounted from the side of table Specifications Capacity: 5000N (when fixed with two nuts), 2500N (when fixed with one nut) Weight: Approx.5,300g X Stroke: +/-60mm (With one T nut), +/-30mm (Installing vise grip GT-2000N) Y Stroke: +/-15mm T Nut Screw Size: M8 Distance of T Nuts: Max.125mm Related Products - Vise Grip GT-30/2000N GT-30/2000N is vise grip with 2000N capacity. Its wide fixing hole is easy to adjust the position of the vise for sample alignment. - Self-centering Vise Grip GTW-50L/50R GTW-50L/50R is self-centering vise grip with 1000N capacity. Its self-centering design makes sample alignment easy. - Self-centering Vise Grip GTW-2500N GTW-2500N is self-centering vise grip with 2500N capacity. It enables to fix the samples at the center due to self-centering design. It also can be used to fix magnetic materials due to stainless made body. We offer almost 100 of ready-made attachments to fit a wide range of force testing applications such as tension/ compression/ peel/ COF test. See our website for further information. With our know-how accumulated over 70 years, we are confident in offering the best force measurement solution for your needs. Please contact us for any inquiries.
