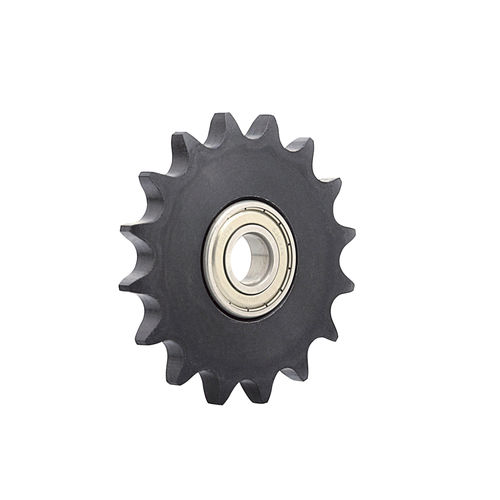

Chain sprocket wheel SISstraight-toothedsteelwith ball bearing
Add to favorites
Compare this product
Characteristics
- Type
- chain
- Teeth
- straight-toothed
- Material
- steel
- Other characteristics
- with ball bearing
- Diameter
Min.: 49 mm
(2 in)Max.: 98 mm
(4 in)
Description
Imao’s sprockets are available from a wide variety of materials and sizes.
SIS: Steel Idle Sprockets
・ Heavy-duty
・ Stable rotation with moulded-in ball bearing
・ Steel body with induction hardened teeth top for high wear resistance
・ Applicable to chain No. 35, 40, 50, 60, 80
・ For 10mm, 12mm, 15mm, 20mm diameter spindle
Use with PID Idler Pins.
Materials:
Sprocket body: S45C Steel, Induction hardened teeth top, Black oxide finish
Bearing: Steel
Datasheet: https://www.imao.co.jp/files/on-cat/pdf/en/sis-e.pdf
