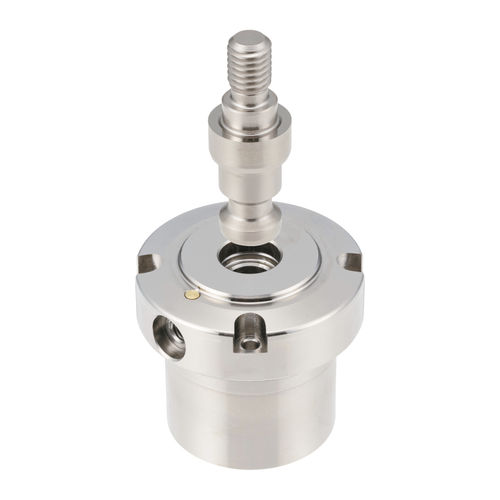

Flange zero-point clamping system AMWFH-S

for integrationstandardcompact

Pneumatic Flex Locators
Pneumatic clamping locators provide quick positioning and strong clamping for automated machinery, reducing setup time
and improving productivity in frequent changeovers.


Pneumatic Clamping Modules
- Features -

• Air-operated locator that instantly positions and clamps the pin.
• Internal balls grip and pull down the pin securely.
• Keeps the plate surface flush for unobstructed use.
• Spring clamping and pneumatic unclamping.

- Specifications -

• Locating Repeatability (mm): 0.06
• Clamping Force (N): 600 / 1000
• Flange Dia (mm): 49 / 64
