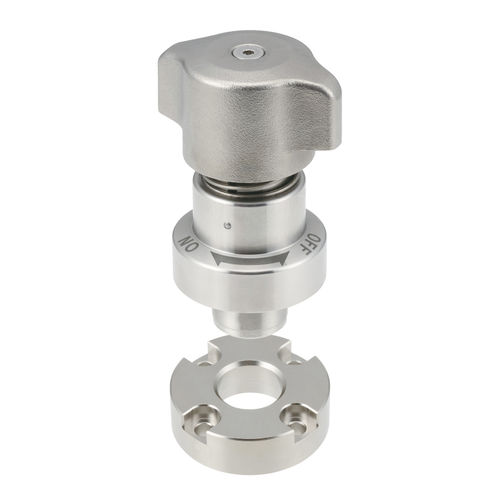

Plate zero-point clamping unit CP740

mechanicalcompact

Flex Locators
Locators combining positioning and clamping in one action for quick fixture changes.
Tapered contact ensures high repeatability, with strong mechanical clamping.


Retractable One-Touch Clamping Locators
- Features -

• Quick and secure positioning and clamping with a simple knob turn, no tools required.
• The retractable shaft allows installation without protrusion, making it ideal for sliding or door applications.
• Combines accurate locating and strong clamping in one operation.
• Clear “ON” and “OFF” markings allow instant visual confirmation of the clamping status.

- Specifications -

• Locating Repeatability (mm): 0.02
• Clamping Force (N): 2500
• Body Dia (mm): 40
