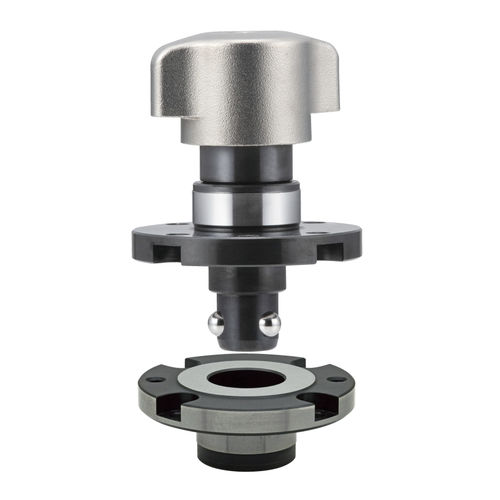

Horizontal machining center zero-point clamping unit CP741

platemechanicalcompact

Flex Locators
Locators combining positioning and clamping in one action for quick fixture changes.
Tapered contact ensures high repeatability, with strong mechanical clamping.


Precision One-Touch Clamping Locators
- Features -

• Quick and secure positioning and clamping with a simple knob turn, no tools required.
• Delivers exceptional 0.003 mm locating accuracy and 3000 N clamping force.
• Combines accurate locating and strong clamping in one operation.

- Specifications -

• Locating Repeatability (mm): 0.003
• Clamping Force (N): 3000
• Flange Dia (mm): 60
