Butt weld pipe accessory MOP/MOP-F
Add to favorites
Compare this product
Characteristics
- Type
- butt weld
Description
Overview
The MOP/MOP-F baffle plate is a passive inline device installed downstream of steam control valves to reduce outlet velocity and suppress noise and vibration. Intended for turbine bypass, vent and other high-velocity steam applications, the design limits sonic flow in accordance with IEC 60534-8-3. Installing a baffle plate instead of upsizing the valve allows more compact and cost-effective valve system layouts. Available in straight-through body form with corn-type (MOP) or flat-type (MOP-F) plates, compatible with standard BWE end connections. IMI has applied this solution in steam systems since 1980.
Key benefits
Key features
Product form and function

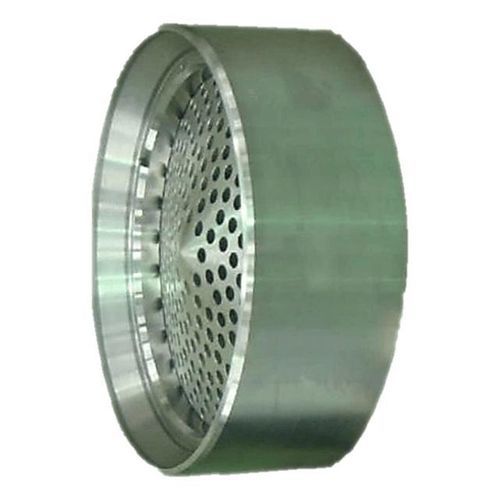

The unit is a cylindrical metallic assembly containing an internal perforated plate. When fitted downstream of a control valve it reduces outlet velocity and interrupts acoustic paths to suppress noise and vibration in high-pressure steam systems. Designed for industrial environments with standard BWE connection compatibility. IMI offers engineering support for selection and integration.
Caractéristiques / spécifications techniques
The MOP/MOP-F baffle plate is a passive inline device installed downstream of steam control valves to reduce outlet velocity and suppress noise and vibration. Intended for turbine bypass, vent and other high-velocity steam applications, the design limits sonic flow in accordance with IEC 60534-8-3. Installing a baffle plate instead of upsizing the valve allows more compact and cost-effective valve system layouts. Available in straight-through body form with corn-type (MOP) or flat-type (MOP-F) plates, compatible with standard BWE end connections. IMI has applied this solution in steam systems since 1980.
Key benefits
- Reduces steam discharge velocity to minimise acoustic noise and vibration downstream of control valves.
- Eliminates need for larger valve sizing in high-pressure-drop applications, supporting compact system design.
- Proven industrial solution with long operational history and compliance with international standards.
Key features
- Application: turbine bypass, vents and steam systems.
- Inline baffle plate, straight-through body.
- Standards: IEC 60534-8-3; ASME B31.1 compliance.
- Plate options: Corn plate (MOP) or flat plate (MOP-F).
- End connections: standard BWE.
- Sizes: 6" to 32" standard; 34"+ available as special.
- Materials: carbon steel; chrome-moly.
- Fluid: steam (other fluids on request).
Product form and function
The unit is a cylindrical metallic assembly containing an internal perforated plate. When fitted downstream of a control valve it reduces outlet velocity and interrupts acoustic paths to suppress noise and vibration in high-pressure steam systems. Designed for industrial environments with standard BWE connection compatibility. IMI offers engineering support for selection and integration.
Caractéristiques / spécifications techniques
- Fluid types: Steam.
- End connections: BWE standard.
- Materials: Carbon steel; chrome-moly steel.
- Body type: Straight-through.
- Design codes: ASME B31.1; IEC 60534-8-3 (sonic flow limitations).
- Temperature limits (°C): 0 to 400.
- Sizes: 6" to 32" standard (34"+ special).
- Plate types: Corn (MOP) or Flat (MOP-F).
