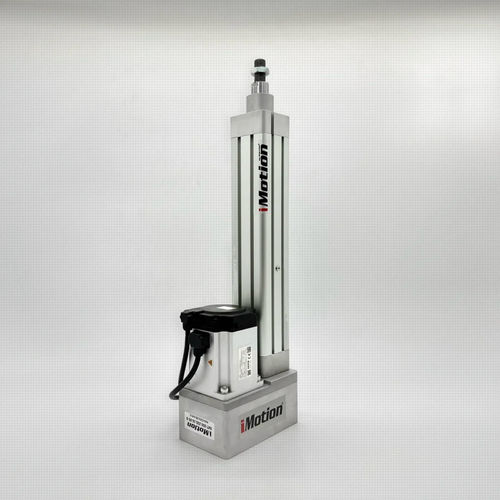

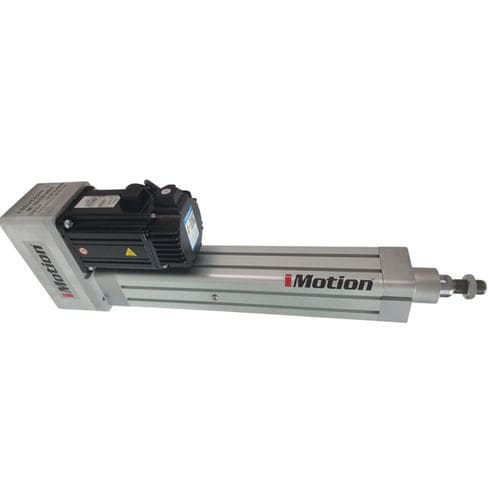

Electric cylinder IMT50
with servo-motorstepperISO 15552

Electric cylinder - IMT50 - iMotion - with servo-motor / stepper / ISO 15552
Electric cylinder - IMT50 - iMotion - with servo-motor / stepper / ISO 15552
Electric cylinder - IMT50 - iMotion - with servo-motor / stepper / ISO 15552 - image - 2
Add to favorites
Compare this product
Go to the iMotion website for more information

Characteristics

Type
electric
Technology
with servo-motor, stepper
Norms
ISO 15552
Protection class
IP54, IP65
Applications
industrial
Other characteristics
standard, in-line
Stroke

1,000 mm
(39.37 in)

Force

Max.: 17,000 N

Min.: 2,750 N

Max acceleration

10 m/s²
(32.81 ft/s²)

Repeatability

0.03 mm
(0.0012 in)

Description

t is produced in ISO1552 pneumatic Cylinder dimensions as standard, and many different stepper or Servo motors can be connected according to the desired speed and force. Fasteners used in pneumatic cylinders can be used in Electric Cylinder. Standard channel type sensors can be used. Products can be produced in different pitches specific to your application.
