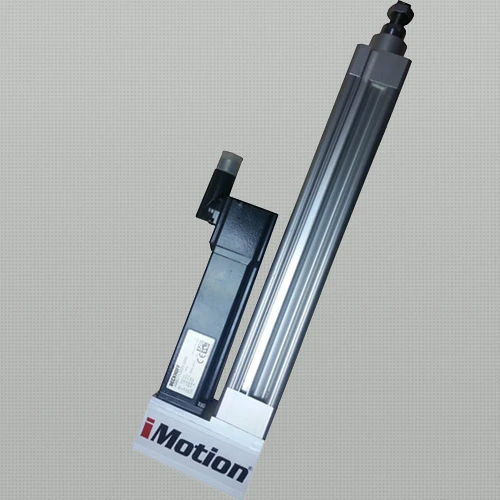

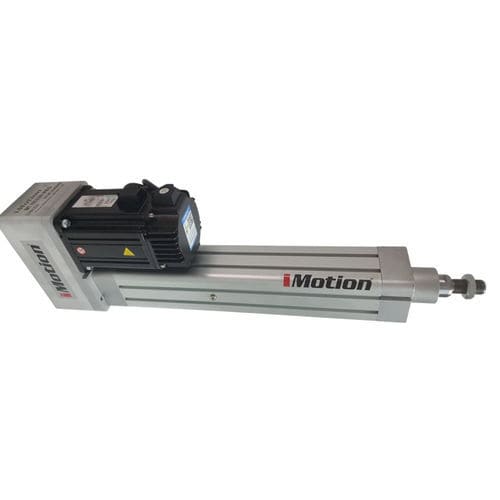

Electric cylinder IMT63with servo-motorstepperISO 15552
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- with servo-motor, stepper
- Norms
- ISO 15552
- Protection class
- IP54, IP65
- Applications
- industrial
- Other characteristics
- standard, in-line
- Stroke
1,000 mm
(39.37 in)- Force
Min.: 3,500 N
Max.: 23,380 N
- Max acceleration
15 m/s²
(49.21 ft/s²)- Repeatability
0.03 mm
(0.0012 in)
Description
IMT electric cylinders are developed for applications requiring linear motion, high-precision positioning, repeatability and controlled speed variation in synchronised systems. The ball screw, driven by an electric motor, moves the piston rod of the ISO 15552-compatible cylinder linearly through the ball nut.
Key Features
Precision ball-screw drive technology
High positioning accuracy and repeatability
Designed for easy replacement of pneumatic cylinders
Anti-rotation piston rod
Flexible motor integration
