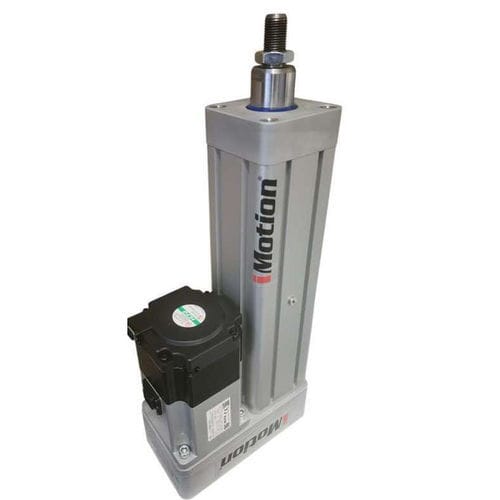

Electric cylinder IMTK 40

screwball screwIP54

Overview
IMTK 40 provides controlled electric linear motion for compact industrial machinery. The size 40 body, two ball-screw lead options and selectable inline or parallel motor mounting facilitate integration in space-constrained production equipment and OEM machines.

Key performance values

• Nominal operating force: 900 N
• Maximum speed: 500 mm/s (depends on screw & motor)
• Standard maximum stroke: 600 mm
• Repeatability: <0.03 mm
• Maximum acceleration: 12 m/s²

Main features / advantages

• Two ball-screw lead options (12x5 and 12x10) to match required force and speed
• Inline or parallel motor mounting for flexible machine layouts
• High dynamic capacity (up to 5,000 N depending on screw selection)
• Compact size 40 body suited for limited installation spaces
• Acceleration up to 12 m/s² for high-cycle production
• IP54 standard protection; IP65 optional for harsher environments
• Designed to comply with Machinery Directive 2006/42/EC

Technical specifications / General data
Cylinder size: 40
Available screw lead: 5 / 10 mm
Standard maximum stroke: 600 mm
Maximum acceleration: 12 m/s²
Repeatability: <0.03 mm
Protection rating: IP54 (IP65 optional)
Motor mounting: Inline or parallel
Compliance: Machinery Directive 2006/42/EC

Performance by screw option
Screw size: 12x5 — Dynamic load capacity: 5,000 N — Static load capacity: 8,600 N — Maximum speed*: 250 mm/s — Nominal force: 900 N
Screw size: 12x10 — Dynamic load capacity: 4,400 N — Static load capacity: 7,700 N — Maximum speed*: 500 mm/s — Nominal force: 900 N
* Maximum speed depends on motor speed and application conditions.

Technical dimensions (examples)
Inline Motor Mounting — key dimensions
A*: 93 mm
B: 63 mm
C: 10 mm
D: 6 mm
E: 24 mm
F: 25 mm
G: 22 mm
H: M12x1.25
I: 54 mm
J: 38 mm
K: M6
L: 60 mm

Parallel Motor Mounting — key dimensions
A*: 93 mm
B: 42 mm
C: 10 mm
D: 6 mm
E: 24 mm
F: 25 mm
G: 22 mm
H: M12x1.25
I: 54 mm
J: 38 mm
K: M6
L: 122 mm
M: 71 mm

Applications

• Packaging machinery
• Assembly automation
• Pick-and-place systems
• Compact OEM machinery
• Pneumatic cylinder replacements / conversions
• Light-duty industrial positioning

Notes

• Speed values are based on a motor speed of 3,000 rpm; load, stroke, cycle time and mounting must be evaluated together for final selection.
• Add the chosen stroke value to dimension A when calculating the total assembly length.

Characteristics / technical specifications

• Model series: IMTK 40
• Cylinder size: 40
• Available screw leads: 5 mm, 10 mm
• Standard maximum stroke: 600 mm
• Reference motor speed: 3,000 rpm (speed values calculated on this basis)
• Typical maximum speed: up to 500 mm/s (varies with screw and motor selection)
• Maximum acceleration: 12 m/s²
• Repeatability: <0.03 mm
• Nominal operating force: 900 N
• Dynamic/static load capacities (12x5): 5,000 N / 8,600 N
• Dynamic/static load capacities (12x10): 4,400 N / 7,700 N
• Protection: IP54 standard, IP65 optional
• Motor mounting: Inline or parallel
• Compliance: Machinery Directive 2006/42/EC
