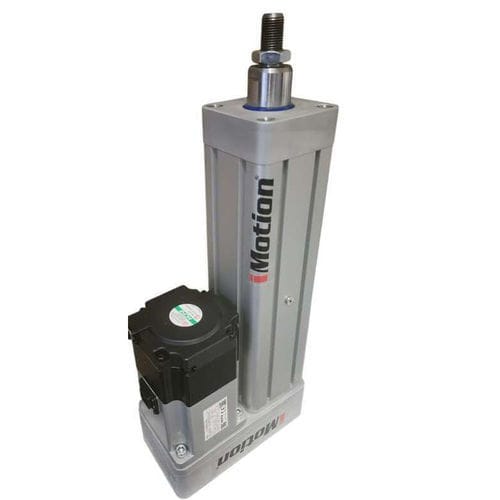

Electric cylinder IMTK 63

ball screwservo-motorIP54

Overview
IMTK 63 is engineered to deliver reliable electric motion for compact machines requiring higher force at a controlled investment cost. Compact size 63 body, two ball screw options (16x5 and 16x10), inline or parallel motor mounting, and high load capacity make it suitable for high-volume production applications.

Key performance values

• Nominal operating force: 2000 N
• Maximum speed: 500 mm/s (depends on screw and motor)
• Standard maximum stroke: 1000 mm
• Repeatability: <0.03 mm

Features

• Two ball screw options: 16x5 and 16x10 to match required force and speed
• High dynamic capacity: up to 10,700 N (depending on screw)
• Compact machine integration: size 63 fits compact designs requiring higher force
• Two motor arrangements: inline and parallel mounting
• High acceleration: up to 12 m/s² for high-volume cycles
• Optional IP65 protection (standard IP54)

General Data and Screw Performance (tables)
General Data
Cylinder size: 63
Available screw lead: 5 / 10 mm
Standard maximum stroke: 1000 mm
Maximum acceleration: 12 m/s²
Repeatability: <0.03 mm
Protection rating: IP54; IP65 optional
Motor mounting: Inline or parallel
Compliance: Machinery Directive 2006/42/EC

Performance by Screw Option
Screw size: 16x5 · Dynamic load capacity: 8,100 N · Static load capacity: 12,400 N · Maximum speed*: 250 mm/s · Nominal force: 2000 N
Screw size: 16x10 · Dynamic load capacity: 10,700 N · Static load capacity: 17,000 N · Maximum speed*: 500 mm/s · Nominal force: 2000 N

Notes
* Maximum speed depends on selected motor speed and application conditions.

Technical Dimensions (selected values)
Inline Motor Mounting (dimensions in mm)
A*: 96
B: 88
C: 11
D: 8
E: 32
F: 32
G: 27
H: M16x1.5
I: 75
J: 56.5
K: M8
L: 80

Parallel Motor Mounting (dimensions in mm)
A*: 96
B: 47
C: 11
D: 8
E: 32
F: 32
G: 27
H: M16x1.5
I: 75
J: 56.5
K: M8
L: 163
M: 84

Mounting & Motor Options

• Inline motor mounting (compact inline configuration)
• Parallel motor mounting (parallel configuration)
• Motor arrangements support common industrial servo/step motors; inline or parallel mounting allows flexible integration

Applications

• Packaging machinery
• Assembly automation
• Pick-and-place systems
• Compact OEM machinery
• Pneumatic cylinder conversions
• Light-duty industrial positioning

Characteristics / Technical specifications

• Denomination: IMTK 63
• Brand: iMotion
• Cylinder size: 63
• Available screw leads: 5 mm and 10 mm (ball screw options)
• Standard maximum stroke: 1000 mm
• Maximum acceleration: 12 m/s²
• Repeatability: <0.03 mm
• Nominal operating force: 2000 N
• Maximum speed (16x5): 250 mm/s
• Maximum speed (16x10): 500 mm/s
• Dynamic load capacity (16x5): 8,100 N
• Static load capacity (16x5): 12,400 N
• Dynamic load capacity (16x10): 10,700 N
• Static load capacity (16x10): 17,000 N
• Protection rating: IP54 standard; IP65 optional for harsh environments
• Motor mounting: Inline or Parallel
• Compliance: Machinery Directive 2006/42/EC
• Typical applications: packaging, assembly automation, pick-and-place, OEM machines, pneumatic-to-electric conversions
