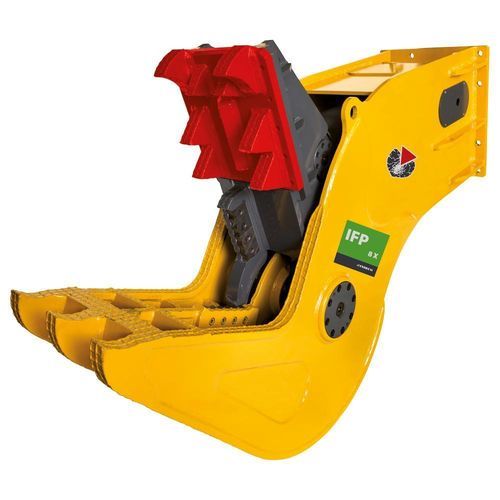

Concrete hydraulic crusher IFP 8 X

for primary demolitionfor excavators

Product overview
IFP 8 X is a fixed hydraulic pulverizer intended for demolition and material processing on excavators weighing 6–18 t. Attachment operating weight: 750 Kg (includes mounting bracket compatible with Indeco standards, HP 1200).

Technical specifications

• Excavator weight: 6–18 t
• Attachment operating weight*: 750 Kg
• Max opening: 650 mm
• Height: 1700 mm
• Width: 980 mm
• Jaw width: 345 mm
• Oil flow: 80–200 l/min
• Max working pressure: 350 bar
• Max clamping force at tip: 50 t
• Max clamping force at shears: 160 t
• Shear length: 100 mm
• Max cutting diameter: 40 mm
• Min closing time: 2 s**
• Min opening time: 1 s
• Hydraulic connections: 3/4 in
• Mounting bracket compatibility: HP 1200

Compatible carriers

• Compact excavator
• Wheeled excavator

Notes
*The attachment operating weight includes the mounting bracket according to Indeco construction standards; actual weight may vary depending on bracket configuration.
**Values without regeneration valve.
N.B. All illustrations and numerical data are indicative and may be modified without notice for product improvement and development.

Key characteristics

• Fixed pulverizer for concrete and demolition processing
• Compact width (980 mm) for confined-site operation
• Significant shear forces: 160 t (shears) and 50 t (tip)
• Operates with oil flow 80–200 l/min and pressure up to 350 bar
