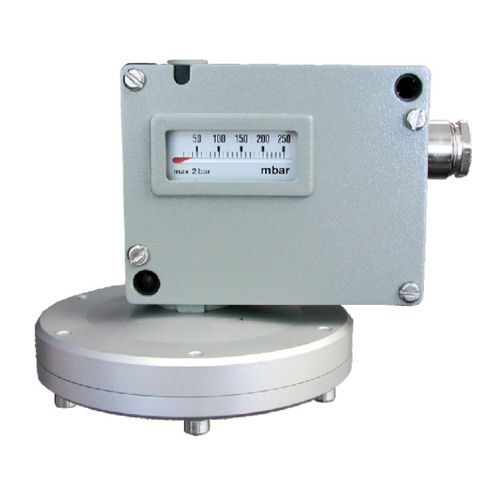

Water pressure switch PSM230 series
diaphragmdifferentialpiston

water pressure switch
water pressure switch
water pressure switch
water pressure switch
water pressure switch
water pressure switch
water pressure switch
water pressure switch
water pressure switch
water pressure switch
water pressure switch
water pressure switch
Add to favorites
Compare this product

Characteristics

Fluid
for water
Technology
diaphragm, differential, piston, bellows
Applications
for hydraulic applications, industrial, for pumps, HVAC, for railway applications
Other characteristics
compact, stainless steel, rugged, intrinsically safe, IP65, adjustable
Process temperature

Max.: 150 °C (302 °F)

Min.: -40 °C (-40 °F)

Pressure range

Max.: 3,500,000 Pa (507.63 psi)

Min.: -90 Pa (-0.01 psi)

Description

RUGGED HOUSING ST. STEEL OR BRONZE SENSOR REPEATABILITY BETTER THAN 1.0% EXCELLENT VIBRATION RESISTANCE RANGES COVERING -90 TO 10,000kPa DUST PROOF AND WATER PROOF (IP65) ADJUSTABLE OR FIXED SWITCHING DIFFERENTIAL INTERNAL OR EXTERNAL SETPOINT ADJUSTMENT BRACKET FOR SURFACE MOUNTING (OPTION) GOLD PLATED CONTACTS FOR INTRINSICALLY SAFE CIRCUITS (OPTION) Indumart PSM210 Series Industrial Pressure Switches with metal bellows sensors meet stringent demands and can be used in critical industrial applications where particularimportanceisattachedtomeasuring reproducibility, long term stability and protection against water and dust penetration. Housed in a die cast aluminum case, the Series PSM210 Controllers are supplied with either stainless steel or bronze sensors and wetted parts. The setpoint adjustment nub can be external for ease of frequent setpoint changes, or be placed inside the case to prevent setpoint tampering. Sadjustable or fixed. Indumart 2000 Series Pressure Switches are used when an electrical signal is required at a given pressure value. The measuring principle of the 2000 Seriesis a spring loaded diaphragm (ranges 0 to 5) or a sturdy piston (ranges 6 & 7) and its switching point as well as its hysteresis are (1)adjustable. Electrical connection is made in the instrument's DIN connector, and the switching reliability and long service life of the instrument is guaranteed by its silver plated change-over contact. Indumart PSP100 Series Pressure Switches are used in processes involving air, water, oil or hydrogen fluoride refrigerants. Their function is to activate an at a given pressure value.SP
