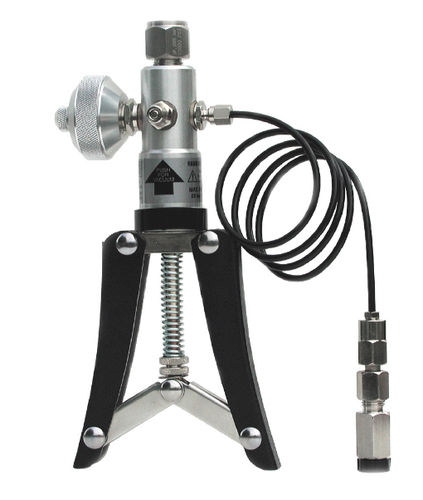

Hydraulic calibration pump HCA series

pneumaticmanualfor pressure generation

PRESSURE UP TO 600 PSI (40 BAR) VACUUM UP TO -12 PSI (-0.8 BAR) OVER PRESSURE PROTECTION FINE ADJUSTMENT VALVE TWO PORTS FLEXIBLE HOSE CARRYING CASE INTRODUCTION Indumart HCA870/PH Hand Pump produces stable negative and positive pressures and is used for pressure calibration applications. This precision instrument has an adjustable system to limit the maximum pressure produced by the hand pump and to prevent the items under test from over pressure damages. The HCA870/PH is supplied in a high quality carrying case along with a flexible hose and provisions for additional instruments. The hand pump can be combined with an Indumart PCA870 pressure calibrator or with a DG50 digital test gauge to form a complete pressure calibration system SPECIFICATIONS Output Pressure Up to 600 psig (40 barg) Output Vacuum Up to 29 inHg (-960 mbarg) Pressure Connection 3" NPT Material Bright nickel plated brass,Clear anodized aluminum Adjustment Fine adjustment valves Dimensions 220 x 105 x 63 mm (L x W x D) Indumart HCA870/H Hand Pump is a hand held and easy to use instrument which can generate pressures up to 10,000 psi (700 bar). The sealed construction of the HCA870/H assures great pressure stability, and prevents any leaks. This precision instrument is equipped with a fine adjustment valve to allow producing the exact required pressures. The hand pump offers a unique selector switch to move from priming to pressure generation The HCA870/H hand pump is supplied in a high quality carrying case along with a quick connecting flexible hose.
