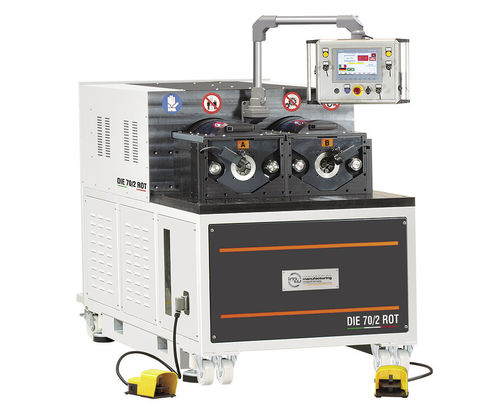

Twin-head forming machine DIE series

pipe-endfor pipesfor metal

Simultaneous expanding and reducing. Expanding, Reducing, Endsizing, Dimples, single and double Beading, Lining and Grooves on tubes by means of segmented I/O fingers and rotary increasing programs. Description and Technical data Models: DIE 40/2, DIE 70/2 ROT, DIE 150/2 ROT • Working unit with two heads • Range tube from ø10 mm to ø150 mm • Stainless tube thickness 2 mm • Endsizing length from 50 mm max. to 120 mm max. • Expansion range 9 mm • Reduction range 5 mm • Length varying according to diameter Innovations: • Higher performance • Bigger HMI • Machine frame REVISED
