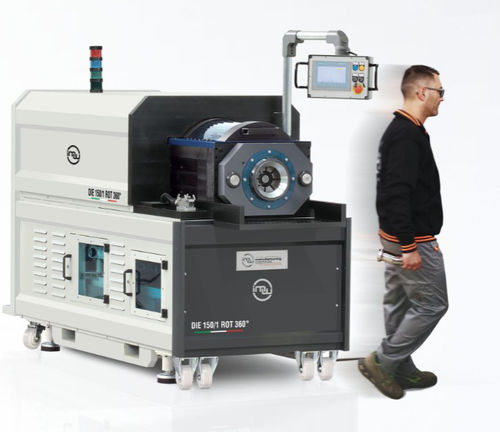

Pipe-end forming machine DIE 150/1 ROT 360°

for pipesfor metalsleeve

Simultaneous expanding and reducing. This machine is capable of precision sizing of tubes by simultaneous expanding and reducing. The machine is equipped with segmented tooling consisting of expanding fingers and reducing jaws, rotating 360° to allow the tube to stay still during forming. This gives the advantage of working with bent and long tubes, without posing risks to the operator. The machine is also designed for beads and bulges on tubes. Description and Technical data Model: DIE 150/1 ROT 360° • Working unit with one head • Range tube from ø35 mm to ø150 mm • Stainless tube thickness 2 mm • Endsizing length 120 mm max. • Expansion range 9 mm max. • Reduction range 5 mm max.
