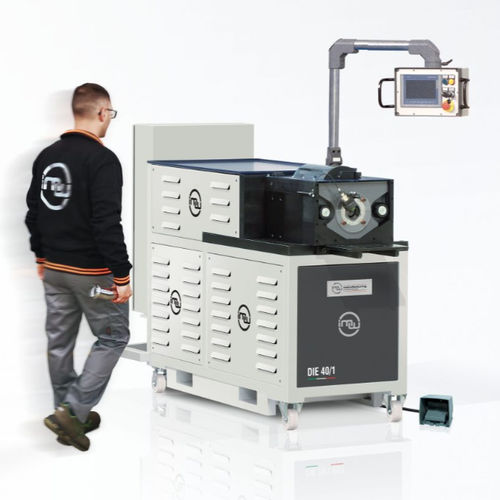

Pipe forming machine DIE 40/1
for metalpipe-endtube

pipe forming machine
pipe forming machine
pipe forming machine
pipe forming machine
pipe forming machine
pipe forming machine
Add to favorites
Compare this product


Characteristics

Product handled
pipe-end, for pipes, for metal, sleeve, tube
Treated material
metal, for stainless steel, steel, copper, for aluminum, for iron
Control
CNC, PLC-controlled
Operating mode
horizontal
Other characteristics
hydraulic, precision, for tube reducing, for tube expanding

Description

Simultaneous expanding and reducing. Expanding, Reducing, Endsizing, Dimples, single and double Beading, Lining and Grooves on tubes by means of segmented I/O fingers and rotary increasing programs. Description and Technical data • Working unit with one head • Range tube from ø10 mm to ø50 mm • Stainless tube thickness 2 mm • Endsizing length 50 mm max. • Expansion range 9 mm • Reduction range 5 mm • Length varying according to diameter
