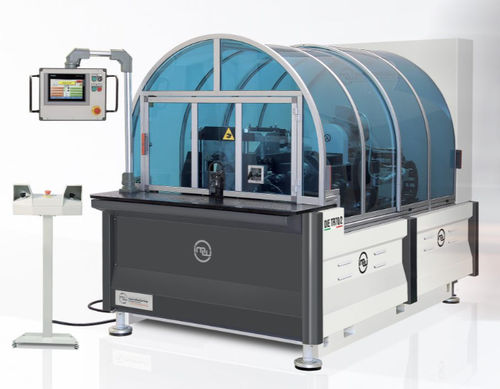

Orbital forming machine DIE TR 70/2

pipe-endfor pipessleeve

Tube endsizing machine with 360° rotating inner fingers + tube trimming with rotating blade. It has the feature to merge two heads in one head by slides lenghtwise and crosswise which allow the internal movements of the individual heads. The sizing head is capable of precision sizing of tubes through numerical control and by internal fi ngers rotating of 360° and an upper and lower clamp the keep tube like external jaws. The end-trimming head is designed for chipless cutting of straight or bent tubes, by means of a satellite rotating wheel. Description and Technical data Model: DIE TR 70/2 • One head with two heads internally • Sizing range: 9 mm • Cut-off length up to 90 mm • Specif closing jaws
