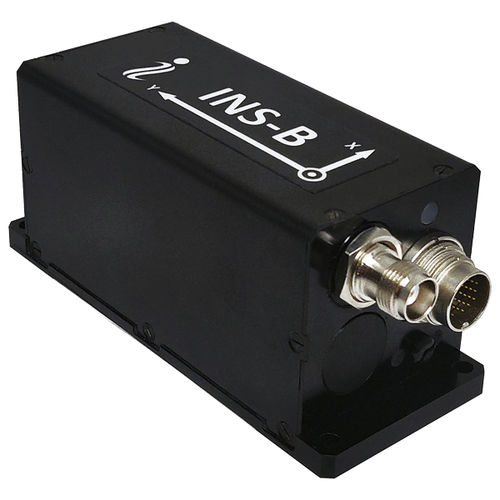

GNSS inertial navigation system INS-B
miniaturehigh-accuracylightweight

GNSS inertial navigation system - INS-B - Inertial Labs, Inc. - miniature / high-accuracy / lightweight
GNSS inertial navigation system - INS-B - Inertial Labs, Inc. - miniature / high-accuracy / lightweight
GNSS inertial navigation system - INS-B - Inertial Labs, Inc. - miniature / high-accuracy / lightweight - image - 2
GNSS inertial navigation system - INS-B - Inertial Labs, Inc. - miniature / high-accuracy / lightweight - image - 3
Add to favorites
Compare this product

Characteristics

Options
GNSS, miniature, high-accuracy, lightweight, for UAVs, with integrated GPS, ITAR-free

Description

INS-B Single Antenna Basic Single GNSS Antenna Inertial Navigation System. - - - - - - - - - - Heading Accuracy: 1° static / 0.1° dynamic. Position Accuracy: 1cm (RTK), 2.5cm (PPP), 60cm (SBAS). Pitch & Roll Accuracy: 0.03° dynamic, 0.05° static. GNSS Constellations: BDS, GAL, GLO, GPS, QZSS. Corrections: DGPS, PPK, PPP, RTK, SBAS. Type of IMU: MEMS, Tactical-grade. Magnetometer: External Magnetic Compass (optional). Other Features: Tactical Grade IMU, Advanced, extendable, embedded Kalman Filter with sensor fusion algorithms. Size (mm): 120.5 x 53.2 x 49.3 Applications: UGV; Land Vehicle Navigation; Lightweight AGV; Post Processed Imagery. - - - - - - - - - -

VIDEO

Other Inertial Labs, Inc. products

INS – GPS-Aided Inertial Navigation Systems

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
