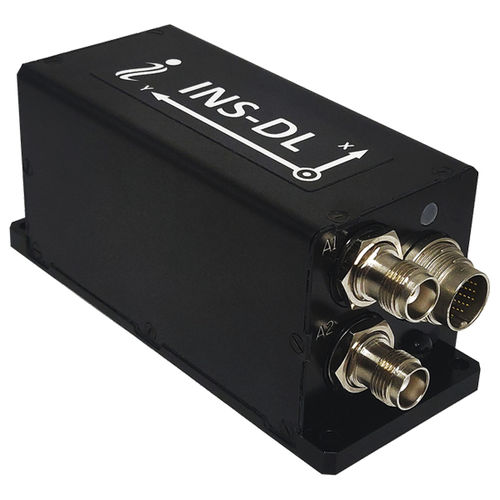

GNSS inertial navigation system INS-DLminiaturehigh-accuracylightweight
Add to favorites
Compare this product
Characteristics
- Options
- GNSS, miniature, high-accuracy, lightweight, for UAVs, with integrated dual-antenna GPS, with integrated GPS, ITAR-free
Description
INS-DL
Dual Antenna
Low Cost Dual GNSS Antenna Inertial Navigation System
- - - - - - - - - -
Heading Accuracy: 0.2° (2m baseline) / 0.4° (1m baseline).
Position Accuracy: 1cm (RTK), 60cm (SBAS).
Pitch & Roll Accuracy: 0.04° dynamic, 0.08° static.
GNSS Constellations: BDS, GAL, GLO, GPS, QZSS.
Corrections: PPK, RTK, SBAS.
Type of IMU: MEMS, Industrial-grade.
Magnetometer: External Magnetic Compass (optional).
Other Features: Affordable price, Industrial Grade IMU.
Size (mm): 120.5 x 53.2 x 49.3
Applications: Antenna Pointing; Low Cost Position and Velocity; Industrial Navigation.
- - - - - - - - - -
