DC servo-drive IRD-eb series

direct currentCANopenEtherCAT

Overview

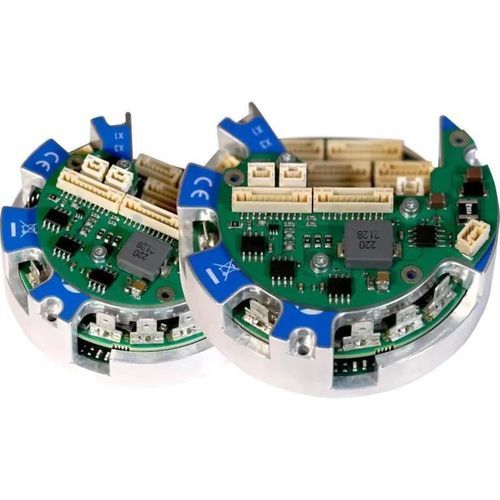

The IRD servo drive is a compact direct-mount servo amplifier engineered for cobots, AGVs and space-constrained automation systems. It delivers precise motion control with support for EtherCAT and CANopen fieldbuses and multiple encoder configurations suited to high-performance robotic applications.

Key features

• Flexible communication: EtherCAT and CANopen connectivity for integration with controllers and networks.
• Direct-mount design: circular form factor for mounting directly to a joint or motor, reducing cabling and mechanical complexity.
• Encoder support: two configurations — dual BiSS-C or TTL + HES — for high positioning accuracy and responsiveness.
• High-performance motion control: precise speed and position control for demanding loads.
• Safety: built-in STO and SBC certified to SIL3 / PLe.
• Ultra-compact and lightweight: optimized for compact robotics and mobile platforms.
• Fast startup and responsive control loops suitable for dynamic applications.

Available documents (reference names)

• Installation guide
• User guide
• EC certificate
• Latest firmware

Variants and options

• IRD-eb-40/60 — Outer diameter: 90 mm; Inner diameter: 40 mm.
• IRD-eb-48/24 — Outer diameter: 70 mm; Inner diameter: 20 mm.
• IRD-eb-24V option — Allows use of a 24 Vdc power supply and scales inputs/outputs at 24 Vdc (IO-IRD-24V).

Technical specifications

• Voltage: 48 Vdc or 24 Vdc with IO-IRD-24V
• Peak output current: 24 A or 60 Arms
• Speed range: 100 – 25 000 rpm
• Ultra-compact and light: less than 100 g
• Safety: Built-in STO & SBC certified SIL3 / PLe
• Fast startup: 10 ms initialization delay
• Loop bandwidths: 3 kHz current, 800 Hz speed and 300 Hz position
• Encoder configurations supported: BiSS-C (dual) or TTL + HES
• Connectivity: EtherCAT and CANopen
