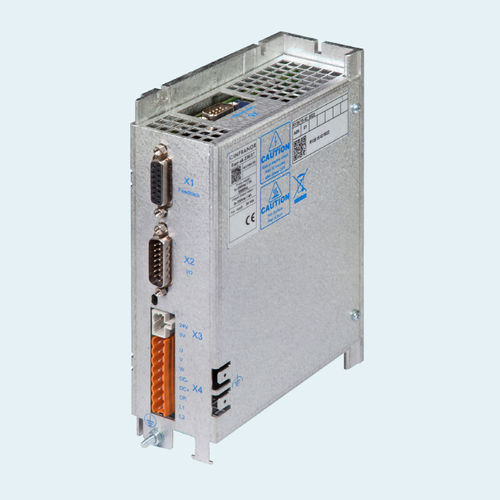

AC servo-drive XtrapulsEasy 230

analogdigitalCANopen

Overview
The 230 VAC servo-drive XtrapulsEasy is a compact AC servo drive intended for motion control applications where cost is a key factor. It supports standard industrial interfaces and common encoder types for flexible integration.

Functions

• Compact AC servo-drive
• CANopen®: DS301, DS402

Tools

• Project manager
• Commissioning wizard
• Multi-axis configuration and diagnostic

Sensors

• Resolver
• Encoders: incremental, Hall-effect
• Sensorless mode

Power stage

• 230 VAC: 17 Arms max

Interfaces

• RS-232
• CANopen®
• Digital and analog I/Os

Safety

• Integrated Safe Torque Off (STO) function

Available resources

• Product downloads
• Libraries & Utilities

Technical specifications

• Supply: 230 VAC
• Maximum power stage current: 17 Arms
• Fieldbus / Protocols: CANopen® (DS301, DS402)
• Serial interface: RS-232
• I/Os: Digital and analog inputs/outputs
• Sensors supported: Resolver; Incremental and Hall-effect encoders; Sensorless operation
• Tools: Project manager, commissioning wizard, multi-axis configuration and diagnostic
• Safety feature: Integrated Safe Torque Off (STO)
• Form factor: Compact AC servo-drive designed for cost-sensitive applications
