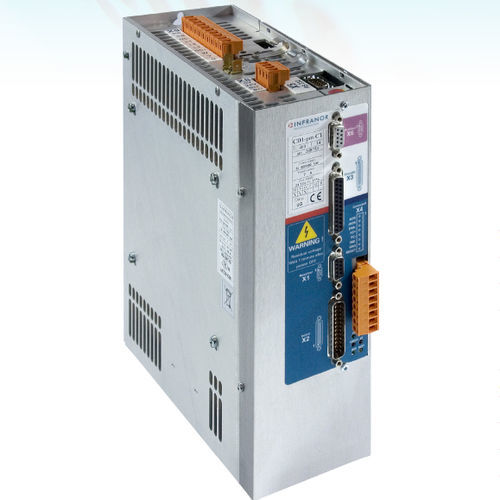

Multi-voltage AC servo controller XtrapulsCD1™

multivoltage

Product overview
The XtrapulsCD1 series is a family of freely configurable actuators for AC synchronous motors. Designed for very dynamic and precise control tasks, the series covers a wide performance range and offers numerous interfaces, making it suitable for integration in diverse machines and industrial systems.

Functions

• Versatile AC actuators for position, speed and torque control
• Configurable standard operating modes for OEM integration
• Support for resolver and encoder feedback

Tools

• Setup Wizard for guided commissioning
• Auto-tuning for optimized control parameters
• Motor library for rapid configuration
• Integrated oscilloscope for signal analysis

Power stage

• AC or DC power supply options
• IGBT power stage for high-efficiency switching
• Dynamic braking capability
• Integrated EMC filters for reduced emissions
• Maximum current: -16.5 A / 230 V ... 90 A / 480 V (site-dependent variants)

Interface

• RS-232 for local communication
• Various field buses for system integration
• Digital and analog inputs/outputs for machine signals

Technical specifications

• Product family: XtrapulsCD1 series
• Motor type: AC synchronous motors
• Feedback: resolver and encoder support
• Power supply: AC or DC
• Power electronics: IGBT power stage
• Braking: dynamic braking
• EMC: integrated EMC filters
• Maximum current range indicated on site: -16.5 A / 230 V ... 90 A / 480 V
• Available tools: Setup Wizard, Auto-tuning, Motor library, Oscilloscope
• Interfaces: RS-232, various field buses, digital & analog I/Os
