Rotary module for robots RJM series

Overview
INFRANOR robot joints are high-precision, lightweight rotary modules with compact, high-torque drives designed for industrial and collaborative robotics. They offer excellent positioning accuracy and repeatability, straightforward installation and integration with a wide range of controllers, and robust mechatronic design for extended operational life.

Key features

• Compact torque drives with up to 6× overload capacity
• High-precision positioning and repeatability
• Vector-control algorithm for high-frequency motion control
• Compatibility with a broad range of common controllers (EtherCAT support)
• Compact, lightweight design for easy integration into industrial or collaborative robot concepts

Robot Joint System — Technical table
Robot Joint System: T-Joint / Straight-Joint
Parameters and Sizes: 14, 17, 20, 25, 32

Maximum Torque [Nm]: 14 -> 57.5 ; 17 -> 164 ; 20 -> 324 ; 25 -> 363 ; 32 -> 750
Range of operation: infinite rotation
Rated speed [rpm]: 14 -> 35.8 ; 17 -> 34.6 ; 20 -> 17 ; 25 -> 16.7 ; 32 -> 16.7
Overall length [mm]: 14 -> 102 ; 17 -> 111.1 ; 20 -> 128 ; 25 -> 135.5 ; 32 -> 151.1
Main features (general): Voltage: 48V (DC) ; Max. torque range: 57.5 - 750 Nm ; Range of joint operation: Infinite ; Absolute encoder repeatability: 0.001 mm ; Communication bus: EtherCAT ; Size variants: 5 ; Weight range: 1.0 - 8.7 kg
Download: product PDF available (see product documents).

Weights by size and joint type
T-Joint weights [kg]: 14 -> 1.32 ; 17 -> 2.2 ; 20 -> 3.0 ; 25 -> 3.41 ; 32 -> 8.67
Straight-Joint weights [kg]: 14 -> 1.0 ; 17 -> 1.2 ; 20 -> 2.0 ; 25 -> 3.29 ; 32 -> 5.81

Technical specifications

• Product family: INFRANOR Robot Joints (T-Joint and Straight-Joint)

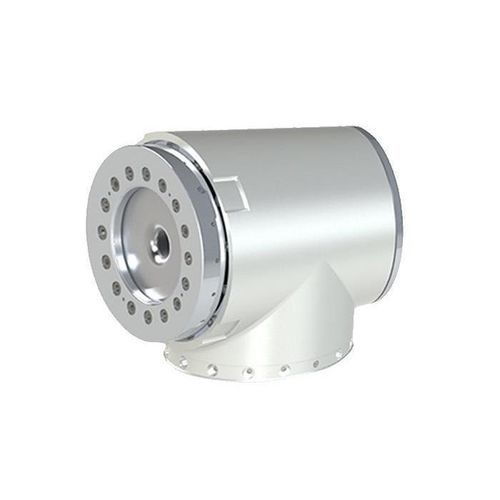

• Model / denomination on page: T-Joint (primary illustrated model)
• Voltage: 48V DC
• Maximum torque range: 57.5 Nm (size 14) up to 750 Nm (size 32)
• Range of operation: infinite rotation
• Rated speed (rpm) per size: 14: 35.8 ; 17: 34.6 ; 20: 17 ; 25: 16.7 ; 32: 16.7
• Overall length (mm) per size: 14: 102 ; 17: 111.1 ; 20: 128 ; 25: 135.5 ; 32: 151.1
• Absolute encoder repeatability: 0.001 mm
• Communication bus: EtherCAT
• Size variants available: 5 (14, 17, 20, 25, 32)
• Weight range: approx. 1.0 kg to 8.7 kg depending on size and joint type
• Designed for easy integration with a wide range of controllers; compact, lightweight, suitable for industrial and collaborative robotics
