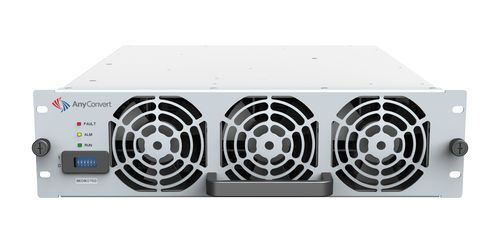

Full SiC power module BEG1K0100G

BiDi ACDC

BEG1K0100G is Infypower's 30kW bidirectional ACDC power modules used to connect the battery or DC bus to the AC grid. It is specially designed for bidirectional conversion applications such as V2G/VPF function EV chargers, retired battery utilization and the micro grid. It also can replace traditional PCS in energy storage systems. By employing the high frequency MOSFET/SiC switch technology, it can achieve excellent performance, high power density, high expansion ability and high reliability. Main Features: 1. Fully isolated bidirectional ACDC conversion, V2G support, off-grid support, max 32 modules on-grid in parallel and 16 modules off-grid in parallel 2. Constant power output@300V-1000Vdc, full power output@320V-530Vac, 200V low voltage grid support 3. Rapid current direction change within 10ms, automatic constant bus voltage support 4. Standard, de-noise and silent mode can be set 5. BABA support 6. Cross compatibility in size and interface with the DCDC, BiDi ACDC, BiDi DCDC, VPF power module and MCS power module 7. Conformal coating and glue flling provide high protection for high reliability 8. Peak efficiency > 97%, full load efficiency > 96.5% 9. UL/TUV CE/cTUVus, global grid code certification
