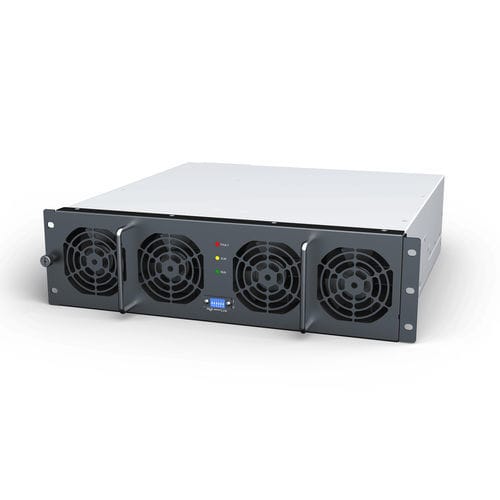

Charging electric vehicle power module REG1K0110U direct currentACDC
Add to favorites
Compare this product
Characteristics
- Options
- for charging electric vehicles
- Type
- ACDC, direct current
- Power
40,000 W
- Voltage
Max.: 1,000 V
Min.: 150 V
Description
REG1K0110U is specifically designed for EV Fast DC chargers. It has the features of high efficiency, low fan noise, high power density and high reliability. By 3 phase 4 wire AC input, it can deliver 40kW DC output power and cover 150~1000VDC output voltage range. It has obtained EMC/EMI Class B, CE, UL, cTUVus and KC certification.
Main Features:
1. Constant power output@363V-1000Vdc, full power output@320V-530Vac
2. Conformal coating and glue flling provide high protection for high reliability
3. Scalable to 60kW with same size
4. 500,000 units shipped worldwide (all types of power modules), TOP1 market share
5. Low standby power consumption < 2W
