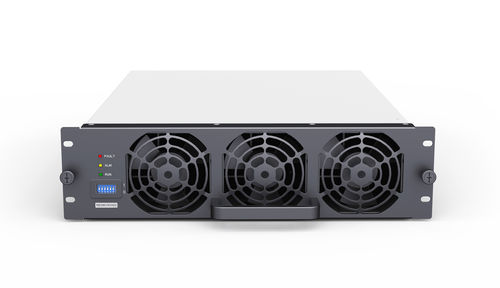

EV charger module REG1K0135G2

DC fast

REG1K0135G2 is especially designed for EV fast charging stations. It has the features of high efficiency, low fan noise, ultra-high power density and high reliability. By 3 phase 4 wire AC input, it can deliver up to 40kW DC output power and cover 150 to 1000VDC output voltage range. It has obtained EMC/EMI Class B, UL, TUV CE, cTUVus and KC certification. Main Features: 1. Cross compatibility with our DCDC, BiDi ACDC, BiDi DCDC and VPF power module in size 2. 40kW, the highest power density in the industry, UHPD 10% higher than average 3. Conformal coating and glue filling provide high protection for high reliability 4. No load PF > 0.9, 5% load PF > 0.95 5. ESTOP function, 1 ms shutdown 6. Standard, de-noise and silent mode can be set 7. Peak efficiency ≥ 97.3%, full-load max efficiency ≥ 96.5% 8. BABA support
