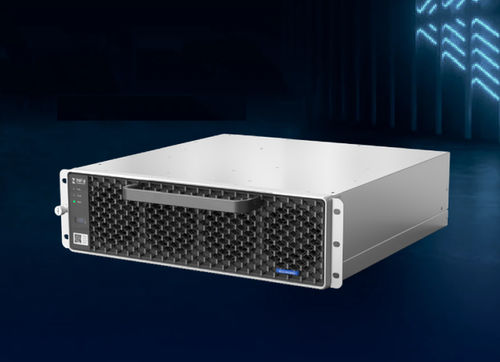

Electric vehicle charger module REG1K0200G

EVDC fast

Product Overview
REG1K0200G is a high-power AC/DC charging module designed for EV fast-charging stations. It supports Variable Power Factor (VPF), 3-phase 4-wire AC input and delivers up to 62.5 kW DC with an output voltage range of 200 Vdc–1000 Vdc. The module meets EMC/EMI Class B and holds TUV CE, cTUVus and KC certifications.

Key Features

• Integrated input AC contactor enabling zero reactive power in standby
• Variable Power Factor (VPF) with PF adjustable from 0.8 leading to 0.8 lagging
• High efficiency: peak ≥97.5%, full-load ≥97%
• Conformal coating and potting (glue filling) for enhanced reliability
• Full DC output power 62.5 kW and max reactive power compensation ±62.5 kVar
• EMC/EMI compliance to Class B standards

Technical Specifications

• Operating Environment
• - Operating temperature: -40°C to +75°C, with power derating above 55°C
• - Transportation/Storage: -40°C to +75°C
• - Relative humidity: ≤95% RH, non-condensing
• - Altitude: up to 4000 m
• - Atmospheric pressure: 79 kPa to 106 kPa
• - Cooling: Forced air cooling
• - Protection rating: IP20
• - Acoustic noise: Standard ≤65 dB; De-noise ≤60 dB; Silent ≤55 dB
• AC Input
• - Frequency: 45 Hz to 65 Hz
• - Input voltage: 3-phase + PE, 260 Vac to 530 Vac
• - Rated voltages: 380/400/480 Vac
• - Max input current: 120 A
• - Power factor: ≥0.99
• - PF adjustment range: 0.8 leading to 0.8 lagging
• - Reactive power compensation: -62.5 kVar to +62.5 kVar
• - Standby power:
• - Integrated input AC contactor for zero reactive standby
• - THDi: ≤5%
• DC Output
• - Max output power: 62.5 kW
• - Output voltage range: 200 Vdc to 1000 Vdc
• - Constant power voltage range: 312.5 Vdc to 1000 Vdc
• - Output current: 0 to 200 A
• - Voltage regulation accuracy: <±0.5%
• - Current regulation accuracy: ≤±1%
• - Current sharing: <±1%
• - Peak efficiency: ≥97.5%
• - Full-load efficiency: ≥97%
• Control
• - Communication: CAN bus, up to 40 power modules in parallel
• - Indicators: Green LED = normal; Yellow LED = alarm; Red LED = fault
• - Addressing: Automatic address identification; panel dial switch for group setting
• - ESTOP: 5 V/12 V dry-contact relay trigger (output voltage drops on trigger)
• Alarm and Protection
• - Input over/under-voltage: automatic shutdown; returns to standby when voltage normal and requires monitor startup command to resume output
• - Output overvoltage: automatic shutdown; manual restart after voltage normal
• - Overcurrent/short circuit: automatic shutdown; returns to standby when cleared and requires monitor startup command to resume output
• - Overtemperature: automatic shutdown; returns to standby when temperature normal and requires monitor startup command to resume output
• Reliability and Safety
• - Certifications: TUV CE, cTUVus, KC
• - EMC/EMI standard: EN IEC 61851-21-2:2021 Class B
• - Safety standards: IEC 61851-1:2023, IEC 61851-23:2023, EN IEC 61851-1:2019
• - MTBF: >300,000 h
• Mechanical Parameters
• - Dimensions (W × D × H): 385 mm × 403 mm × 110 mm
• - Weight: 28 kg
