Water-in-oil monitor Eval

Overview

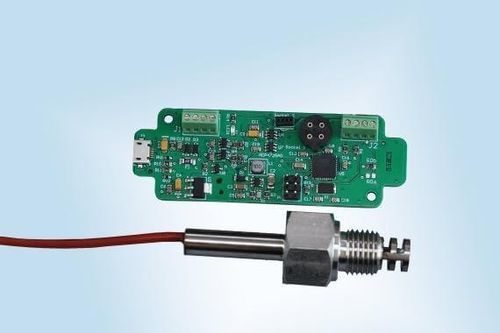

Evaluation kit for moisture-in-oil measurements including an assembled probe and a test board providing digital (I²C) and analog (0..10 V) outputs. The board is compatible with the Arduino IDE environment and includes a micro USB interface for PC connection.

Included

• Assembled, factory-calibrated HYT271 MK33 module for relative humidity (water activity aw) and temperature measurement
• Evaluation board with analog output and digital interface to PC via micro USB
• Probe assembly (screw-in probe with M14x1.5 thread and 4xAWG26 cable, 500 mm)

MK33-W for oil measurement applications
The iST MK33-W capacitive RH sensor is optimized for oil environments and high-end measurement applications. Measurement range covers 0 % RH to 100 % RH (maximum dew point +95 °C). Typical capacitance is 300 pF ±40 pF (at 30 % RH and +23 °C). Extended temperature operation: -40 °C to +190 °C.

HYT271 module – benefits & characteristics
The HYT271 digital humidity module features a mechanically robust, chemically resistant and condensed-water-tolerant sensing area. It is factory-calibrated and provides processed relative humidity and temperature values via an I²C-compatible digital interface. Linearity error and temperature drift are corrected on-chip to ensure high accuracy across a wide range of conditions.

Product features

• Product Name: Moisture in oil Eval Kit
• Measured medium: Air / Oil
• Operating humidity range: Board: non-condensing; Probe: 0 % RH to 100 % RH
• Operating temperature range: Board: -20 .. +50 °C; Probe: -40 °C to +120 °C
• Accuracy humidity: ±3 % RH (board / probe specification)
• Accuracy temperature: ±0.2 °C
• Digital interface: Board to PC: USB; Board to Sensor: I²C
• Analog output: 0..10 V
• Operating voltage: 5 V over USB (analog socket 4-15 V)
• Current consumption: 50 to 300 mA
• Dimensions: Board 84 x 29 mm (L x W); Probe 67 mm (L) with M14x1.5 thread
• Connections: Board: micro USB and analog socket; Probe: 4xAWG26 cable
• Wire length: 500 mm

Caractéristiques / spécifications techniques

• Product code: 157475
• Module: HYT271 MK33 (factory calibrated) for relative humidity (water activity aw) and temperature
• MK33-W humidity measurement range: 0 % RH to 100 % RH (max dew point +95 °C)
• MK33-W capacitance: 300 pF ±40 pF (at 30 % RH and +23 °C)
• MK33-W temperature operation range: -40 °C to +190 °C
• HYT271 accuracy: ±1.8 % RH (module specification) and ±0.2 °C (module specification)
• Outputs: digital (I²C) and analog (0..10 V)
• Interface to PC: micro USB (evaluation board)
• Board dimensions: 84 x 29 mm; Probe: 67 mm (L), M14x1.5 thread; cable 4xAWG26, 500 mm
• Operating conditions: Board non-condensing; probe rated for full RH range
