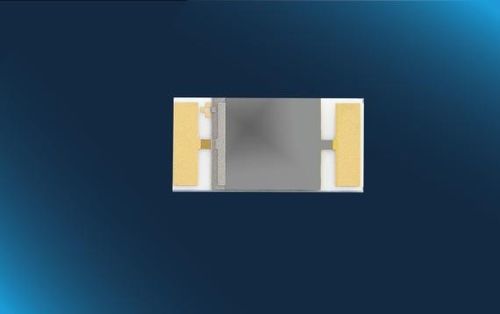

SMD humidity sensor P14 FemtoCap-G

for solidscompactgas

Overview
Capacitive SMD humidity sensor P14 FemtoCap-G for automotive and white goods applications. Operating temperature range -50 °C to +150 °C. Package size 4.0 x 2.0 mm (SMD 1608), compatible with automatic assembly.

Details
Despite its compact footprint, the P14 FemtoCap-G delivers the sensor characteristics required for automotive and domestic appliance environments. When combined with appropriate external electronics, it provides an efficient cost-to-performance solution. Measures 0 % RH to 100 % RH (maximum dew point +85 °C) with a nominal capacitance of 180 pF ±50 pF (at 30 % RH and +23 °C). The device is supplied in SMD format for standard automatic placement.

Benefits & Characteristics

• High chemical resistance
• Very low drift
• Wide temperature range
• High humidity stability
• Resistance to condensation
• Fast recovery time

Price tiers (per piece)
Quantity (pieces) | Price (per piece)
5-49 | CHF 19.80
50-99 | CHF 15.71
100-150 | CHF 13.91

caractéristiques / spécifications techniques

• Product Name: P14 FemtoCap-G
• Capacitance: 180 pF ±50 pF (at +23 °C and 30 % RH)
• Operating humidity range: 0 % RH to 100 % RH (maximal dew point +85 °C)
• Operating temperature range: -50 °C to +150 °C
• Dimensions: 4 x 2 x 0.4 mm
• Connection type: SMD-Pads
• Response time: < 3 s
• Measured medium: Air/Gas
• Package: SMD 1608, automatic assembly compatible
• Product Old code: 040.00111
• Product code: 103563
